DATA PIN FLYBACK
154-064P (goldstar14")154-177B (goldstar21")
FCK-14B047 (akari14")
c _ 180v _ b+ _ gnd _ 16v _ 24v _ 40v _ abl _ htr _ afc.
6174Z-8005C (LG 20")
c - 180 - b+ - gnd - nc - 24 - gnd - abl - ht -afc.
154-064G (goldstar14")
154-177E untk (goldstar20")
c - 180v - b+(92v) - boost up - 24v - 12v - gnd - abl - htr - afc.
154 - 132A (intel)
154 - 132C
6174V - 600H (LG 21")
6174Z - 6040C (LG 21")
BSC 23 - N0107 (LG 14")
c _ 40v _ 16,5 _ htr _ gnd _ b+ _ 180v _ gnd _ abl _ 40v
154 189 C
154 189 H
154 277 C
BSC 22-2314 H
CF 0801-3701
FCM 20B027
c _ b+ _ 180v _ 16v _ 24v _ htr _ gnd _ abl _ afc _ nc.
6174V-6002U (LG 21")
BSC 26-N2121(N) (LG 21")
c - 180v - b+ - gnd - 12v - 26v - nc - abl - ht - afc
BSC 65 A (changhong)
c _ b+ _ 190v _ gnd _ nc _ nc _ 14,5v _ abl _ htr _ afc.
BSC 22-01N401
BSC 22-01N402
BSC 22-01-06
BSC 22-0201
BSC 22-2314B
BSC 23-4404A
BSC 23-14H
BSC 24-14L
BSC 24-01N36
BSC 24-01N362
BSC 24-01N362B
BSC 24-08A
BSC 24-09G
BSC 25-48
BSC 25-4803
BSC 25-4803F
BSC 25-4803T
BSC 25-N0803A
BSC 25-Z601A
c _ b+ _ nc _ afc _ gnd _ htr _ abl _ nc.
BSC 25-2678S (konka K2169TC)
c _ 200v _ b+ _ gnd _ afc _ 16v _ abl _ ht _ nc _ nc
BSC 24-01N4014K (china)
BSC 25-01N4010GA (14")
BSC 25-05N2110A
BSC 25-0909
BSC 25-09N20E
BSC 25-09N21A
BSC 25-1003A
BSC 25-1194D024 (14")
BSC 25-2108A
BSC 25-4813P (cina multy)
BSC 25-N1003A-4-R (21")
BSC 25-T1010A
BSC 25-Z603F (21")
BSC 26-0221 (29")
Tep _ c _ tep _ b+ _ tep _ tep _ gnd _ htr _ abl _ 180v.
DCF 2217 J
c _ b+ _ afc _ boost-up _ 16,5 _ 24 _ abl _ gnd _ 200v _ htr.
F 0101 KM-SA (sharp 14R20 14")
F 0102 KM-SA (sharp 20R20B, 20R200, 51R200)
F 0141 PE-M
F 0147
c _ b+ _ gnd _ 24V _ 16V _ afc _ 180V _ gnd _ ht _ abl
F 0122 PE-M (sharp 20Q250)
c _ b+ _ 24V _ 16V _ nc _ afc _ gnd _ ht _ 180V _ abl
F 0193 PEN1-SA (sharp 14U15)
c _ b+(115) _ gnd _ 40V _ 12V _ afc _ 180V _ gnd _ ht _ abl
F 0194 PEN1-SA (sharp 20R200MKII, 51U200, 20W200)
F 2037 PE-B (sharp 20AG2-S)
c _ b+ _ gnd _ 40V _ 16V _ afc _ 180V _ gnd _ ht _ abl
F 094
FA 061 WJ-SA (sharp 51X200)
c _ b+(130V) _ gnd _ 24V _ 12V _ afc _ 185V _ gnd _ ht _ abl
FA 113 WJ-B (sharp 51DXF250E)
c _ b+ _ gnd _ 24V _ nc _ afc _ 180V _ gnd _ ht _ abl
FA 122 WJ-B
c _ b+(130V) _ gnd _ 24V _ nc _ afc _ 180V _ gnd _ ht _ abl
FA 011 WJ-B (sharp)
c _ b+ _ gnd _ 24V _ 16V _ afc _ 180V _ nc _ ht _ abl
FA 060 WJ-SA (sharp 14S20MKII)
c _ b+ _ gnd _ nc _ 12V _ afc(-12V) _ 180V _ gnd _ ht _ abl
FCG 2045 BL
afc - 16,5v _ htr _ boost-up _ B+83v _ gnd _ nc _ c _ abl _ 175v _ 24v
FCK 1411 L 01
FCM 14A025
c _ boost-up _ abl _ b+ _ gnd _ 180v _ 24V _ htr _ afc _ 16,5v.
FCK 14A006 (14")
FCM 2015HE (21")
FCM 14A032 (21")
FTK 21R002 (21")
KFS 60844A (21")
nc _ nc _ gnd _ 180 _ 15v _ ht _ 24 _ abl _ b+ _ c
FCM 14B014N (polytron 14")
FCM 20B061N (polytron 21")
c _ b+ _ gnd _ 185 _ nc _ htr _ nc _ abl _ +12 _ -12.
FUH29VH02 (polytron29)
c _ b+ _ gnd _ 185v _ nc(16v) _ htr _ nc _ abl(bcl) _ 12v _ 12v
FSV 20A001 (samsung)
FCK 14A033
FSV 14A001
c _ b+125v _ abl _ nc _ gnd _ 185 _ 46 _ htr _ nc _ 16,5
FTK-14A004P (samsung)
c _ b+125v _ abl _ nc _ gnd _ 180v _ 24v _ htr _ afc _ 16,5.
FUY-20C009 (akari)
c _ 180 _ b+ _ gnd _ nc _ 24 _ nc _ abl _ htr _ afc.
FCG 2045 BL
afc _ 16,5v _ htr _ boost-up _ b+83v _ gnd _ nc _ c _ abl _ 175v _ 24v.
HTF2904
c _ b+ _ 24v _ 16v _ gnd _ htr _ grnd _ afc _ nc _ 180v
FSA 16012M
DCF 2077A
DCF 1577
FSA 16012M
c _ b+ _ afc _ boost-up _ 16,5 _ abl _ 25v _ gnd _ 185v _ htr.
JF 0501-1206
c _ b+ _ 180v _ 16v _ 25v _ htr _ gnd _ abl _ afc _ nc.
JF 0601-19577 (polytron 21'' MX5203R)
c _ b+ _ gnd _ 200v _ nc _ htr _ nc _ abl _ +12 _ -12.
JY 0301-0206 (china 29")
c _ b+ _ nc _ afc _ gnd _ Htr _ abl _ tep _ tep _ tep
K 148 TC
c _ 180v _ b+ _ gnd _ afc _ 16v _ abl _ htr _ nc _ nc.
MC FBC-015
LCE CF0854
c _ b+ _ gnd _ afc _ 185 _ htr _ 25 _ 15 _ gnd _ abl.
8-598-858--00 (sony KV-PG21P70)
8-598-811
c _ b+135v _ 200v _ htr _ gnd _ -16,5(vertkl) _ Gnd(vertkl) _ +16,5(vertkl) _ nc _ abl
goldstar
BSC25-Z305A
BSC25-Z3201
FCM20B058
154-064
154-177B
1=HOT 2=180V 3B+ 4=GRND 5=16V 6=24V 7=40V 8=ABL 9H/T 10=AFC
FCG 2045BL
BSC 24-0406D
1=HOUT 2=180V 3=B+ 4=GRND 5=24V 6=16V 7=ABL 8=H/T 9=NC 10=NC
154-138K
1=190V 2=NC 3=HOUT 4=AFC 5=B+ 6=43V 7=ABL 8=GRND 9=12V 10=H/T
BSC 22-2314H
154-189C
JF 0501-1206
1=HOUT 2=B+ 3=180V 4=16V 5=26V 6=H/T 7=GRND 8=ABL 9=AFC 10=NC
BSC 24-01N4004U
1=HOUT 2=B+ 3=+13V 4=-13V 5=GRND 6=H/T 7=AFC 8=ABL 9=NC 10=NC
6174Z-8040C
1=HOUT 2=185V 3=B+ 4=GRND 5=-14V 6=+14V 7=GRND 8=ABL 9=H/T 10=AFC
MC-FBC-015
LCE CF 0854
1=HOUT 2=B+ 3=GRND 4=AFC 5=185V 6=H/T 7=25V 8=15V 9=GRND 10=ABL
CHINA :
BSC25-4813
BSC 25-N0301CY
BSC 25-1003A
BSC 25-Z603F
BSC 25-09N20ER
BSC 25-N0312A
BSC 25-T1010A
BSC 24-N40G1
BSC24-01N4001M
1=TP 2=HOUT 3=TP 4=B+ 5=TP 6=TP 7GRND 8=H/T 9=ABL 10=180V
CHINA :
BSC 25-4803T
BSC 25-4804TC
BSC 25-03F69F
BSC 25N1616T
BSC 25-03P79
BSC 25-N0449
BSC 24-01N36
BSC 23-N0124R
BSC 22-01016H
BSC 25-0236
BSC 25-03P79
BSC 25-N0803A
BSC 22-N65T
BSC 25-0251
BSC 25-3604V
L 40B10602
1=C.2=B+.3=NC.4=AFC.5=GRND.6=H/T.7=ABL.8=TP
SHARP :
F0101KM-SA
F0141PE-M
F0102KM-SA
F094
FA061WJ-SA
FA060WJ-SA
FA135
F0147
BSC-250216F
FA093WJ-SA
1=hout 2=B+ 3=ground 4=24vol 5=16vol 6=afc 7=180vol 8=grn 9=h/t 10=ABL
FO193PEN1-SA
1=hout 2=B+ 3=ground 4=45vol 5=16vol 6=afc 7=180vol 8=grn 9=h/t 10=ABL

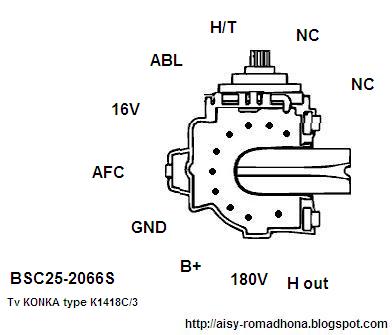

KONKA :
BSC 25-0106
BSC 25-2678S
JF 0501-19188
1=C 2=180VOL 3=B+ 4=GRND 5=AFC 6=16VOL 7=ABL 8=H/T 9=NC 10=NC
FCM 2015HE
FCM 14A032
C _ B+ _ Abl _ 24v _ Heater _ 16v _ 180v _ Gnd _ Nc _ Abl
SAMSUNG :
FCA173 el
FOK 14A001
HR8628
FSV14A001
FSV14A004
CHINA BRAIND :
BSC24-014001D
BSC25-N0321
BSC25-N1534
BSC25-N1634
BSC25-Z1003
BSC25-Z2705
BSC25-Z2706
BSC25-N0313
1=H1 2=H 3=H2 4=B+110 5=H3 6=H4 7=GND 8=HT 9=ABL 10=AFC
TCL :
BSC 25=0252S
1=C.2=B+.3=NC.4=NC.5=NC.6=AFC.7=GRND.8=ABL.9=200VOL.10=H/T
TCL :
JF0501-1619
BSC25-0299D,
185V _H+_AFC_B+_16V_24V_ABL_GND_NC_H/T
POLYTRON :
JF0501-19577
H_B+_GRND_+VID_+VID_H/T_NC_BCL_12VOL_HSINC-12VOL
(Samsung)
![[image-upload-359-700405.jpg]](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiZlvh4yT3uterPhgvjgewpzPU4xlBE21MAxdJGx9yjeYUHfe1fxTAZGL_-S_K3JdigbIlz805yjyU5ZN7JQRWdgHE5cjlyFTDtuo_3TZSe3QtJAk59QMzJ5D1xtQzHenCcc_i09ldFKEo/s1600/image-upload-359-700405.jpg)
FSV
14A001FSV 20A001
FCK 14A033
FCV 20A001
16,5V_NC_H_46V_185V_GROUND_NC_ABL_B+125V_COL
154-064P (Goldstar)
154-177B
FCK 14B047 (Akari)
COL_185V_B+_GROUND_16V_24V_40V_ABL_H_AFC
154-064G (Goldstar)
154-177E
COL_180V_92V_125VBOOST_24V_12V_GROUND_ABL_H_AFC
FCM 14A025 (Samsung, Blaupunkt)
FCM 1411L01
16,5V_AFC_H_24V_180V_GROUND_B+90V_ABL_125VBOOST_COL
DCF 1577 (Daewoo, Mitsuba)
DCF 2077
FSA 16012M
COL_B+_AFC_125VBOOST_16,5V_ABL_24V_GROUND_180V_H
FTK 14B011 (Aiwa)
COL_B+_25V_GROUND_180V_H_ABL_GROUND_AFC_15V
FCK 1411E10A (Etron)
190V_COL_NC_B+_NC_24V_ABL_GROUND_15V_H
JF 0208-0208C (Solitron)
COL_B+_GROUND_185V_H_ABL_GROUND_15V_AFC_24V
JF 0208-0210B (Sansui)
JF 0501-0501
COL_B+_180V_14V_24V_H_GROUND_ABL_AFC_NC
FCM 14B014N (Polytron, Digitec)
FCM 20B061N
JF 0601-19577
COL_B+_GROUND_200V_NC_H_NC_ABL+12v_-12v
JF 0501-1206 (Sansui)
COL_B+_180V_16V_25V_H_GROUND_ABL_AFC_NC
L40B17100 (Sanyo)
COL_B+_NC_180V_AFC_GROUND_ABL_NC_H_GROUND
L40B09000 (Sanyo)
COL_B+_NC_AFC_GROUND_H_ABL_16V_NC_180V
L40B05500 (Sanyo)
COL_B+_NC_AFC_GROUND_H_GROUND_NC_NC_ABL
L40B09001 (Sanyo)
COL_B+_NC_AFC_GROUND_H_ABL_NC_NC_180V
6174Z-6040C (LG)
BSC 23-N0107
COL_185V_B+_GROUND_-14V_+14V_GROUND_ABL_H_AFC
BSC 24-08B (Tv China)
BSC 24-01N362
BSC 25-4803
BSC 25-N1616
BSC 25-0106
COL_B+_NC_AFC_GROUND_H_ABL_NC
BSC 25-T1010A (Tv China)
BSC 24-01N4014K
BSC 25-09N21A
BSC 25-09N20E
TEP_COL_TEP_B+_TEP_TEP_GROUND_H_ABL_180V
BSC 60HZ (Changhong)
COL_B+_190V_GROUND_11V_16V_45V_ABL_H_AFC
BSC 24-2231HC (Panda)
COL_B+_46V_16V_GROUND_AFC_ABL_H_180V_NC
BSC 65A (Changhong)
COL_B+_190V_GROUND_NC_NC_14,5V_ABL_H_AFC
TFB 4067BD (Toshiba)
TFB 4125CH
TFB 4122HY/ES/CS/DY
BSC 23-N0102
COL_B+_185V_GROUND_NC_24V_12V_ABL_H_AFC
FCK 14A028 (Fuji Electric)
NC_B+_14V_24V_H_GROUND_ABL_180V_B+_COL
154-189C (Fuji Electric)
154-277C
FCM 20B027
COL_B+_180V_14V_22V_H_GROUND_ABL_AFC_NC
FUY 20C009 (Akari)
COL_180V_B+_GROUND_NC_24V_NC_ABL_H_AFC
FCK 14A006 (Digitec, Polytron, OK)
FCM 2015HE
FCM 14A032
KFS 60844A
NC_NC_GROUND_185V_15V_H_24V_ABL_B+_COL_
154-138K (Etron)
154-182H
190V_NC_COL_AFC_B+_43V_ABL_GROUND_12V_H
CF 0801 (Fujitec)
COL_B+180V_15V_24V_H_GROUND_ABL_NC_NC
CF 0854 (Fuji Electric, Siera)
CF 0582
COL_B+_GROUND_AFC_185V_H_25V_15V_GROUND_ABL
FSA 28027M (Fuji Electric)
COL_NC_NC_123V_12V_ABL_25V_GROUND_185V_H
BSC 24-01N4009A (Tv China)
COL_NC_B+_GROUND_NC_TEP_NC_ABL_H_AFC
BSC 22-2314H (Fujitec)
COL_B+_180V_15V_24V_AFC_GROUND_ABL_NC_NC
BSC 22-01N40J (Tv China)
COL_180V_115V_GROUND_22V_16V_ABL_H_NC_NC
F 0193 PEN1-SA (Sharp)
F 0194 PEN1-SA
COL_B+_GROUND_42V_12V_AFC_185V_GROUND_H_ABL(cat: teg 12v pada FBT F0194= 16V)
F 0042PE-M (Sharp)
15V_COL_24V_B+_ABL_AFC_GROUND_NC_180V_H
F 0063PE-M (Sharp)
F 0067PE-M
COL_B+_24V_12V_NC_AFC_GROUND_H_185V_ABL
F 0102KM-SA (Sharp)
COL_B+_GROUND_24V_14V_AFC_180V_GROUND_H_ABL
FA 060WJ-SA (Sharp)
COL_B+_GROUND_NC_12V_(AFC/-12V)_185V_GROUND_H_ABL
FA 061WJ-SA (Sharp)COL_(B+130V)_GROUND_24V_12V_AFC_185V_GROUND_H_ABL
FA 113WJ-B (Sharp)COL_B+_GROUND_24V_NC_AFC_180V_GROUND_H_ABL
FA 122WJ-B (Sharp)COL_(B+130V)_GROUND_24V_NC_AFC_180V_GROUND_H_ABL
FTK 14A004P (Samsung)
16,5V_AFC_H_24V_180V_GROUND_NC_ABL_(B+125V)_COL
154-279C (Siera, Fuji Electric)
COL_(B+135V)_200V_GROUND_GROUND_25V_16V_ABL_H_NC
BSC 25-N0363 (LG 21FU6RL/Pearl Black)
COL_180V_B+_GROUND_INNER_26V_NC_ABL_H_AFC
8-598-858-00 (Sony)
8-598-11
COL_B+_200V_H_GROUND_-16,5V_GROUND_+16,5V_NC_ABL
QQH0132-001 (JVC AV-1438)
COL_B+_40V_NC_25V_GROUND_H_ABL_180V_GROUND
JF 0501-19539 (Polytron MX5262RF/Zepelin)
COL_B+_GROUND_185V_NC_H_25V_ABL_12V_Hpulse
BSC 25-1194D030 (SANKEN)
FSV 20A099
16,5V_24V_H_46V_180V_GROUND_NC_ABL_B+125V_COL
FTK 14A004F(S) (SAMSUNG)
16,5V_24V_H_-16,5V_185V_GROUND_NC_ABL_B+125V_COL
8-597-041-20 (SONY KV-LS21M61)
COL_B+_200V_H_GROUND_(-13V)_GROUND_(+13V)_NC_ABL
FUH 29VH04 (POLYTRON PS30UV25BM) U-SLIM
COL_B+(135)_GROUND_185V_NC_H_BCL_+12V_-12V
JF0501-32611 (SANYO CG21SF1T) FLAT 21COL_B+(125)_NC_185V_AFC_ABL_ABL_NC_H_GROUND
DATA
PIN FLYBACK LENGKAP
FSV 14A001 (Samsung)
FSV 20A001
FCK 14A033
FCV 20A001
16,5V/NC/H/46V/185V/GROUND/NC/ABL/B
+125V/COL
154-064P (Goldstar)
154-177B
FCK 14B047 (Akari)
COL/185V/B
+/GROUND/16V/24V/40V/ABL/H/AFC
154-064G (Goldstar)
154-177E
COL/180V/92V/125VBOOST/24V/12V/GROUND/ABL/H/
AFC
FCM 14A025 (Samsung,
Blaupunkt)
FCM 1411L01
16,5V/AFC/H/24V/180V/GROUND/B
+90V/ABL/125VBOOST/COL
DCF 1577 (Daewoo, Mitsuba)
DCF 2077
FSA 16012M
COL/B
+/AFC/125VBOOST/16,5V/ABL/24V/GROUND/180V/H
FTK 14B011 (Aiwa)
COL/B
+/25V/GROUND/180V/H/ABL/GROUND/AFC/15V
FCK 1411E10A (Etron)
190V/COL/NC/B
+/NC/24V/ABL/GROUND/15V/H
JF 0208-0208C (Solitron)
COL/B
+/GROUND/185V/H/ABL/GROUND/15V/AFC/24V
JF 0208-0210B (Sansui)
JF 0501-0501
COL/B
+/180V/14V/24V/H/GROUND/ABL/AFC/NC
FCM 14B014N (Polytron, Digitec)
FCM 20B061N
JF 0601-19577
COL/B
+/GROUND/200V/NC/H/NC/ABL
/
+12v/-12v
JF 0501-1206 (Sansui)
COL/B
+/180V/16V/25V/H/GROUND/ABL/AFC/NC
L40B17100 (Sanyo)
COL_B
+_NC_180V_AFC_GROUND_ABL_NC_H_GROUND
L40B09000 (Sanyo)
COL_B
+_NC_AFC_GROUND_H_ABL_16V_NC_180V
L40B05500 (Sanyo)
COL_B
+_NC_AFC_GROUND_H_GROUND_NC_NC_ABL
L40B09001 (Sanyo)
COL_B
+_NC_AFC_GROUND_H_ABL_NC_NC_180V
6174Z-6040C (LG)
BSC 23-N0107
COL_185V_B+_GROUND_-14V_
+14V_GROUND_ABL_H_AFC
BSC 24-08B (Tv China)
BSC 24-01N362
BSC 25-4803
BSC 25-N1616
BSC 25-0106
COL_B+_NC_AFC_GROUND_H_ABL_NC
BSC 25-T1010A (Tv China)
BSC 24-01N4014K
BSC 25-09N21A
BSC 25-09N20E
TEP_COL_TEP_B
+_TEP_TEP_GROUND_H_ABL_180V
BSC 60HZ (Changhong)
COL_B
+_190V_GROUND_11V_16V_45V_ABL_H_AFC
BSC 24-2231HC (Panda)
COL_B
+_46V_16V_GROUND_AFC_ABL_H_180V_NC
BSC 65A (Changhong)
COL_B
+_190V_GROUND_NC_NC_14,5V_ABL_H_AFC
TFB 4067BD (Toshiba)
TFB 4125CH
TFB 4122HY/ES/CS/DY
BSC 23-N0102
COL_B
+_185V_GROUND_NC_24V_12V_ABL_H_AFC
FCK 14A028 (Fuji Electric)
NC_B
+_14V_24V_H_GROUND_ABL_180V_B
+_COL
154-189C (Fuji Electric)
154-277C
FCM 20B027
COL_B
+_180V_14V_22V_H_GROUND_ABL_AFC_NC
FUY 20C009 (Akari)
COL_180V_B
+_GROUND_NC_24V_NC_ABL_H_AFC
FCK 14A006 (Digitec, Polytron,
OK)
FCM 2015HE
FCM 14A032
KFS 60844A
NC_NC_GROUND_185V_15V_H_24V_ABL_B
+_COL_
154-138K (Etron)
154-182H
190V_NC_COL_AFC_B
+_43V_ABL_GROUND_12V_H
CF 0801 (Fujitec)
COL_B
+180V_15V_24V_H_GROUND_ABL_NC_NC
CF 0854 (Fuji Electric, Siera)
CF 0582
COL_B
+_GROUND_AFC_185V_H_25V_15V_GROUND_ABL
FSA 28027M (Fuji Electric)
COL_NC_NC_123V_12V_ABL_25V_GROUND_185V_H
BSC 24-01N4009A (Tv China)
COL_NC_B
+_GROUND_NC_TEP_NC_ABL_H_AFC
BSC 22-2314H (Fujitec)
COL_B
+_180V_15V_24V_AFC_GROUND_ABL_NC_NC
BSC 22-01N40J (Tv China)
COL_180V_115V_GROUND_22V_16V_ABL_H_NC_NC
F 0193 PEN1-SA (Sharp)
F 0194 PEN1-SA
COL_B
+_GROUND_42V_12V_AFC_185V_GROUND_H_ABL
(cat: teg 12v pada FBT F0194=
16V)
F 0042PE-M (Sharp)
15V_COL_24V_B
+_ABL_AFC_GROUND_NC_180V_H
F 0063PE-M (Sharp)
F 0067PE-M
COL_B
+_24V_12V_NC_AFC_GROUND_H_185V_ABL
F 0102KM-SA (Sharp)
COL_B
+_GROUND_24V_14V_AFC_180V_GROUND_H_ABL
FA 060WJ-SA (Sharp)
COL_B+_GROUND_NC_12V_
(AFC/-12V)_185V_GROUND_H_ABL
FA 061WJ-SA (Sharp)
COL_(B
+130V)_GROUND_24V_12V_AFC_185V_GROUND_H_ABL
FA 113WJ-B (Sharp)
COL_B
+_GROUND_24V_NC_AFC_180V_GROUND_H_ABL
FA 122WJ-B (Sharp)
COL_(B
+130V)_GROUND_24V_NC_AFC_180V_GROUND_H_ABL
FTK 14A004P (Samsung)
16,5V_AFC_H_24V_180V_GROUND_NC_ABL_
(B+125V)_COL
154-279C (Siera, Fuji Electric)
COL_(B
+135V)_200V_GROUND_GROUND_25V_16V_ABL_H_NC
BSC 25-N0363 (LG 21FU6RL/Pearl
Black)
COL_180V_B
+_GROUND_INNER_26V_NC_ABL_H_AFC
8-598-858-00 (Sony)
8-598-11
COL_B
+_200V_H_GROUND_-16,5V_GROUND_
+16,5V_NC_ABL
QQH0132-001 (JVC AV-1438)
COL/B
+/40V/NC/25V/GROUND/H/ABL/180V/GROUND
JF 0501-19539 (Polytron
MX5262RF/Zepelin)
COL/B
+/GROUND/185V/NC/H/25V/ABL/12V/Hpulse
BSC 25-1194D030 (SANKEN)
FSV 20A099
16,5V/24V/H/46V/180V/GROUND/NC/ABL/B
+125V/COL
FTK 14A004F(S) (SAMSUNG)
16,5V/24V/H/-16,5V/185V/GROUND/NC/ABL/B
+125V/COL
1. L40B18500 : COL/B
+/24V/180V/AFC/NC/ABL/16V/GROUND/H
(SANYO)
2. BSC25-0232A/FA 104 WJZZ : COL/B
+/GROUND/24V/+12V/-12V/180V/GROUND/H/ABL
(SHARP)
3. BSC 25-0285B : COL/B
+/24V/15V/GROUND/H/NC/180V/NC/ABL
4. BSC 25-T1010A (Tv China)
5. FA 116 WJ (SHARP)
Flyback Transformer Data Pin
154-064P
154-177B
FCK-14B047 6174Z-8004R
C _ 180v _ B+ _ Gnd _ 16v _ 24v _ 40v _ Abl _ Heater _ Afc
F 0101KM-SA
F 0141 PE-M
C _ B+ _ Gnd _ 24v _ 16v _ Afc _ 180v _ Gnd _ Heater _ Abl
K 148 TC
C – 180v _ B+ – Gnd _ Afc _ 16v _ Abl _ Heater _ Nc _ Nc
FCG 2045 BL
Afc – 16,5v _ Heater _ Boost-up _ B+83v _ Gnd _ Nc _ C _ Abl _ 175v _ 24v
FSA 16012M
DCF 2077A
DCF 1577
FSA 16012M
C – B+ – Afc _ Boost-up _ 16,5 _ Abl _ 25v _ Gnd _ 185v _Heater
JF 0501-1206
C _ B+ _ 180v _ 16v _ 25v _ Heater _ Gnd _ Abl _ Afc _ Nc
JF0601-19577 (polytron)
C_B+_gnd_200v_nc_Ht_nc_abl_+12_-12
FCK 14A006
FCM 2015HE
C _ B+ _ Abl _ 24v _ Heater _ 16v _ 180v _ Gnd _ Nc _ Abl
FCM-20B061N (polytron)
c_B+_gnd_185_nc_Ht_Nc_abl_+12_-12
FUY-20C009 (akari)
C_180_B+_gnd_nc_24_nc_abl_Ht_afc
BSC 65A
C _ B+ _ 190v _ Gnd _ Nc _ Nc _ 14,5v _ Abl _ Heater _ Afc
154 – 132A
154 – 132C
C _ 20v _ 16,5 _ Heater _ Gnd _ B+ _ 180v _ Gnd _ Abl _40v
FCK 1411 L 01
FCM 14A025
C _ Boost-up _ Abl _ B+ _ Gnd _ 180v _ 24V _ Heater _ Afc _ 16,5v
154 189H
154 277C
FCM 20B027
C _ B+ _ 180v _ 16v _ 24v _ Heater _ Gnd _ Abl _ Afc _ Nc
MC – FBC-015
LCE CF0854
C _ B+ _ Gnd _ Afc _ 185 _ Heater _ 25 _ 15 _ Gnd _ Abl
FSV – 20A001
FCK – 14A033
FSV – 14A001
16v_Nc_Htr_40v_185v_Grd_Nc_Abl_B+_Cool
BSC 25-N3604 T-R
BSC 25-09N21A
H_Cool_H_B+_24volt_12volt_Grd_Abl_180volt_Hiter
JF 0501-19131
C_B+_12v_Nc_+12v_-12v_180v_Abl_H_Grd
JF 0501-3212
C_B+_Grd_180v_Htr_Abl_Grd_16_Afc_24
BSC 22N56T
C_B+_Afc_24v_Grd_Htr_Abl_180v
154-064D
C_180v_B+_Boost Up_24v_12v_Grd_Abl_Htr+Afc
001-214701-13 (Fujitek)
C_B+_180v_16v_24v_Htr_Grd_Abl_Nc_Nc
QQH-0073-001
QQH-0058-001 (JVC)
C_B+_H pulse_Nc_24v_Grd_Htr_Abl_185v_Grd
CF – 93201
KFS – 60505
+_+_B+_Htr_Afc_Abl_Grd_180v_C
FCM 14B014N
JF 0501-19539
C_B+_Grd_185v_Nc_Htr_24v_Abl_+16_-16v
6174Z-8005C
6174V-6002U
BSC 26-N2121(N)
C_180v_B+_Grd_Nc_24v_Grd_Abl_Htr_Afc
QQH 0132-001
C_B+_40v_Nc_25v_Grd_Htr_Abl_185v_Grd
BSC 25-N3604A4
C_185v_B+_Grd_Nc_Nc_Nc_Abl_Htr_Afc
6174V-6006B
C_185v_B+_Grd_-14_+14_Grd_Abl_Htr_Afc
154-064P Goldstar / 154-177B / FCK-14B047
C _ 180v _ B+ _ Gnd _ 16v _ 24v _ 40v _ Abl _ Heater _ Afc
F0101KM-SA / F 0141 PE-M
C _ B+ _ Gnd _ 24v _ 16v _ Afc _ 180v _ Gnd _ Heater _ Abl
K 148 TC
C – 180v _ B+ – Gnd _ Afc _ 16v _ Abl _ Heater _ Nc _ Nc
FCG 2045 BL
Afc – 16,5v _ Heater _ Boost-up _ B+83v _ Gnd _ Nc _ C _ Abl _ 175v _ 24v
FSA 16012M / DCF 2077A / DCF 1577/ FSA 16012M
C – B+ – Afc _ Boost-up _ 16,5 _ Abl _ 25v _ Gnd _ 185v _Heater
JF 0501-1206 sansui
C _ B+ _ 180v _ 16v _ 25v _ Heater _ Gnd _ Abl _ Afc _ N…
F0101 KM-SA sharp 14R20 / F0102 KM-SA sharp 20R20B, 20R200, 51R200C_B+_GND_24V_16V_AFC_180V_GND_HT_ABL
FA122WJ-B
C_B+(130V)_GND_24V_NC_AFC_180V_GND_HT_ABL
F094 FA061 WJ-SA sharp 51X200
C_B+(130V)_GND_24V_12V_AFC_185V_GND_HT_ABL
F0122 PE-M sharp 20Q250
C_B+_24V_16V_NC_AFC_GND_HT_180V_ABL
F0147
C_B+_GND_24V_16V_AFC_180V_GND_HT_ABL
F0194 PEN1-SA sharp 20R200MKII, 51U200, 20W200/ F2037 PE-B sharp 20AG2-SC_B+_GND_40V_16V_AFC_180V_GND_HT_ABL
FA011 WJ-B sharp
C_B+_GND_24V_16V_AFC_180V_NC_HT_…
1. AKARI / FUJITEC China
14″: BSC 22 – 01N401/ BSC25 – 1194
20/21″ BSC25 – 4803T / BSC22 – 2007/ BSC25-N0803A
COL_B+115V_NC_AFC_GND_H_ABL_NC
2. AKIRA
JF0501 – 1901
BSC23 – N0114
COL_B+_GND_185V_H_ABL_GND_16V_NC_24V
AKIRA Vert +14v dan -14v
JF0501 – 19959
BSC25 – 0235A
COL_B+_+14V_-14V_GND_H_AFC_ABL_NC_185V
AKIRA IC8893CPBNG…….BSC25-05N2135H
COL_B+_NC_AFC_GND_H_ABL_180V
3. AIWA 14/20″:
84-L83-606-01
FTK 14B011
COL_B+115V_24V_GND_185V_H_ABL_GND_AFC_12V
4. DETRON
14″ 154 – 164F
20″ 154 – 165D
24v_14v_B+_H_AFC_ABL_GND_185V_NC_COL
5. SHARP
14″ F0067PE
20″ F0069PE
COL_B+115_24V_16V_NC_AFC_GND_H_185V_ABL
14″ F0193 / 21″F0194
Col_B+115_GND_40V_12V_AFC_185V_GND_H_ABL
6. SHARP picollo
14″ BSC26 – 2631S / FA 060 WJ – SA
21″ JF0501-32601
COL_B+125V_GND_24V_12V_AFC_185V_GND_H_ABL
7. GOLDSTAR
154-177B
154-064P
6174-8004A
COL_185V_B+115V_GND_16V_24V_40V_ABL_H_AFC
154-177E
COL_185V_B+_BOOST UP_25V_12V_GND_ABL_H_AFC
8. JVC
21″ BSC25 – 0262
COL_B+115V_AFC_NC_24V_GND_H_ABL_185V_ GND
9. FUJITEC lama
14″ bsc22 – 2314H
COL_B+_180V_16V_24V_H_GND_ABL_AFC_NC
10. PANASONIC lama: 20″ TLF 4N052 / baru ZTF N82014B
11. SANSUI
JF051 – 1206
COL_B+115V_185V_16V_24V_H_GND_ABL_AFC_NC
12. LG
20″: 6174 – 6006E
29″ 6174Z – 5003A
LG ultra Slim 21″ BSC25-N0363
13. TOSHIBA
14″ TFB 4067 BD
21″ TFB 4125CH
29″ TFB 4086A
COL_B+_185V_GND_NC_24V_12V_ABL_H_AFC
14. POLYTRON / DIGITEC
20″ FCM 20 B 061N / JF 0501- 19577
COL_B+_GND_NC_185V_H_NC_ABL_+12V_-12V
15. POLYTRON lama
14″ FCK 14A006
20″ FCM2015HE
FCM 14-A032
NC_NC_GND_185V_16V_H_24V_ABL_B+_COL
16. SAMSUNG
FSV 14A004
FSV14A001
FSV20A001
16,5V_AFC_H_24V_180V_GND_NC_ABL_B+125_COL
FOK14A001
+16,5V_24V_H_-16V,5_185V_GND_NC_ABL_B+125V_COL
17. TV China
BSC 25 Z 603F
BSC 25 – 4813A
TP1_COL_TP2_B+_TP3_TP4_GND_H_ABL_NC
18. TV China
BSC 25 – 2004PR
COL_B+_NC_AFC_GND_H_ABL_NC_TP1_TP2
BSC24-01N4014K
T1_COL_T2_B+_T3_T4_GND_H_ABL_180V
19. SANYO
21″ L 40 B 15300 / L40B17100
JF0501-32639 (SANYO SLIM 21″)
COL _B+_NC_185V_AFC_ABL_NC_LOW B_H_GND
20. TCL
21″ BSC 25 – 0299D
185V_COL_AFC_B+115V_12V_24V_ABL_GND_NC_H
21. TV China
29″ BSC26 – 3606A
Col_B+125_NC_AFC_GND_H_ABL_T1_T2_T3
22.TV China
29″ BSC28 – N2329
Col_TP2_B+_GND_185V_NC_NC_ABL_H_AFC
23. TV SAMSUNG
29″ FUH29A001 /
SAMSUNG FLAT SLIM JF0501 – 91911 (FQH29A003)
21″ SLIM FQH21A004
COL_NC_B+125V_NC_200V_GND_H_-16,5V_+16,5V_ABL
24. LG
29″ 6174Z – 5003A
COL_B+115V_+14V_-14V_200V_GND_NC_28V_ABL_H
25. KONKA
14″ BSC25-2023S
COL_185V_B+_GND_AFC_14V_ABL_H_NC_NC
Flyback TV dan Persamaannya
Pin Flyback
dilihat / dihitung dari bawah searah jarum jam.
1. AKARI / FUJITEC China
14″: BSC 22 – 01N401/ BSC25 – 1194
20/21″ BSC25 – 4803T / BSC22 – 2007/ BSC25-N0803A
COL_B+115V_NC_AFC_GND_H_ABL_NC
2. AKIRA
JF0501 – 1901
BSC23 – N0114
COL_B+_GND_185V_H_ABL_GND_16V_NC_24V
AKIRA Vert +14v dan -14v
JF0501 – 19959
BSC25 – 0235A
COL_B+_+14V_-14V_GND_H_AFC_ABL_NC_185V
AKIRA IC8893CPBNG…….BSC25-05N2135H
COL_B+_NC_AFC_GND_H_ABL_180V
3. AIWA 14/20″:
84-L83-606-01
FTK 14B011
COL_B+115V_24V_GND_185V_H_ABL_GND_AFC_12V
4. DETRON
14″ 154 – 164F
20″ 154 – 165D
24v_14v_B+_H_AFC_ABL_GND_185V_NC_COL
5. SHARP
14″ F0067PE
20″ F0069PE
COL_B+115_24V_16V_NC_AFC_GND_H_185V_ABL
14″ F0193 / 21″F0194
Col_B+115_GND_40V_12V_AFC_185V_GND_H_ABL
6. SHARP picollo
14″ BSC26 – 2631S / FA 060 WJ – SA
21″ JF0501-32601
COL_B+125V_GND_24V_12V_AFC_185V_GND_H_ABL
7. GOLDSTAR
154-177B
154-064P
6174-8004A
COL_185V_B+115V_GND_16V_24V_40V_ABL_H_AFC
154-177E
COL_185V_B+_BOOST UP_25V_12V_GND_ABL_H_AFC
8. JVC
21″ BSC25 – 0262
COL_B+115V_AFC_NC_24V_GND_H_ABL_185V_ GND
9. FUJITEC lama
14″ bsc22 – 2314H
COL_B+_180V_16V_24V_H_GND_ABL_AFC_NC
10. PANASONIC lama: 20″ TLF 4N052 / baru ZTF N82014B
11. SANSUI
JF051 – 1206
COL_B+115V_185V_16V_24V_H_GND_ABL_AFC_NC
12. LG
20″: 6174 – 6006E
29″ 6174Z – 5003A
LG ultra Slim 21″ BSC25-N0363
13. TOSHIBA
14″ TFB 4067 BD
21″ TFB 4125CH
29″ TFB 4086A
COL_B+_185V_GND_NC_24V_12V_ABL_H_AFC
14. POLYTRON / DIGITEC
20″ FCM 20 B 061N / JF 0501- 19577
COL_B+_GND_NC_185V_H_NC_ABL_+12V_-12V
15. POLYTRON lama
14″ FCK 14A006
20″ FCM2015HE
NC_NC_GND_185V_16V_H_24V_ABL_B+_COL
16. SAMSUNG
FSV 14A004
FSV14A001
FSV20A001
16,5V_AFC_H_24V_180V_GND_NC_ABL_B+125_COL
FOK14A001
+16,5V_24V_H_-16V,5_185V_GND_NC_ABL_B+125V_COL
17. TV China
BSC 25 Z 603F
BSC 25 – 4813A
TP1_COL_TP2_B+_TP3_TP4_GND_H_ABL_NC
18. TV China
BSC 25 – 2004PR
COL_B+_NC_AFC_GND_H_ABL_NC_TP1_TP2
BSC24-01N4014K
T1_COL_T2_B+_T3_T4_GND_H_ABL_180V
19. SANYO
21″ L 40 B 15300 / L40B17100
JF0501-32639 (SANYO SLIM 21″)
COL _B+_NC_185V_AFC_ABL_NC_LOW B_H_GND
20. TCL
21″ BSC 25 – 0299D
185V_COL_AFC_B+115V_12V_24V_ABL_GND_NC_H
21. TV China
29″ BSC26 – 3606A
Col_B+125_NC_AFC_GND_H_ABL_T1_T2_T3
22.TV China
29″ BSC28 – N2329
Col_TP2_B+_GND_185V_NC_NC_ABL_H_AFC
23. TV SAMSUNG
29″ FUH29A001 /
SAMSUNG FLAT SLIM JF0501 – 91911 (FQH29A003)
21″ SLIM FQH21A004
COL_NC_B+125V_NC_200V_GND_H_-16,5V_+16,5V_ABL
24. LG
29″ 6174Z – 5003A
COL_B+115V_+14V_-14V_200V_GND_NC_28V_ABL_H
25. KONKA
14″ BSC25-2023S
COL_185V_B+_GND_AFC_14V_ABL_H_NC_NC
1. AKARI / FUJITEC China
14″: BSC 22 – 01N401/ BSC25 – 1194
20/21″ BSC25 – 4803T / BSC22 – 2007/ BSC25-N0803A
COL_B+115V_NC_AFC_GND_H_ABL_NC
2. AKIRA
JF0501 – 1901
BSC23 – N0114
COL_B+_GND_185V_H_ABL_GND_16V_NC_24V
AKIRA Vert +14v dan -14v
JF0501 – 19959
BSC25 – 0235A
COL_B+_+14V_-14V_GND_H_AFC_ABL_NC_185V
AKIRA IC8893CPBNG…….BSC25-05N2135H
COL_B+_NC_AFC_GND_H_ABL_180V
3. AIWA 14/20″:
84-L83-606-01
FTK 14B011
COL_B+115V_24V_GND_185V_H_ABL_GND_AFC_12V
4. DETRON
14″ 154 – 164F
20″ 154 – 165D
24v_14v_B+_H_AFC_ABL_GND_185V_NC_COL
5. SHARP
14″ F0067PE
20″ F0069PE
COL_B+115_24V_16V_NC_AFC_GND_H_185V_ABL
14″ F0193 / 21″F0194
Col_B+115_GND_40V_12V_AFC_185V_GND_H_ABL
6. SHARP picollo
14″ BSC26 – 2631S / FA 060 WJ – SA
21″ JF0501-32601
COL_B+125V_GND_24V_12V_AFC_185V_GND_H_ABL
7. GOLDSTAR
154-177B
154-064P
6174-8004A
COL_185V_B+115V_GND_16V_24V_40V_ABL_H_AFC
154-177E
COL_185V_B+_BOOST UP_25V_12V_GND_ABL_H_AFC
8. JVC
21″ BSC25 – 0262
COL_B+115V_AFC_NC_24V_GND_H_ABL_185V_ GND
9. FUJITEC lama
14″ bsc22 – 2314H
COL_B+_180V_16V_24V_H_GND_ABL_AFC_NC
10. PANASONIC lama: 20″ TLF 4N052 / baru ZTF N82014B
11. SANSUI
JF051 – 1206
COL_B+115V_185V_16V_24V_H_GND_ABL_AFC_NC
12. LG
20″: 6174 – 6006E
29″ 6174Z – 5003A
LG ultra Slim 21″ BSC25-N0363
13. TOSHIBA
14″ TFB 4067 BD
21″ TFB 4125CH
29″ TFB 4086A
COL_B+_185V_GND_NC_24V_12V_ABL_H_AFC
14. POLYTRON / DIGITEC
20″ FCM 20 B 061N / JF 0501- 19577
COL_B+_GND_NC_185V_H_NC_ABL_+12V_-12V
15. POLYTRON lama
14″ FCK 14A006
20″ FCM2015HE
NC_NC_GND_185V_16V_H_24V_ABL_B+_COL
16. SAMSUNG
FSV 14A004
FSV14A001
FSV20A001
16,5V_AFC_H_24V_180V_GND_NC_ABL_B+125_COL
FOK14A001
+16,5V_24V_H_-16V,5_185V_GND_NC_ABL_B+125V_COL
17. TV China
BSC 25 Z 603F
BSC 25 – 4813A
TP1_COL_TP2_B+_TP3_TP4_GND_H_ABL_NC
18. TV China
BSC 25 – 2004PR
COL_B+_NC_AFC_GND_H_ABL_NC_TP1_TP2
BSC24-01N4014K
T1_COL_T2_B+_T3_T4_GND_H_ABL_180V
19. SANYO
21″ L 40 B 15300 / L40B17100
JF0501-32639 (SANYO SLIM 21″)
COL _B+_NC_185V_AFC_ABL_NC_LOW B_H_GND
20. TCL
21″ BSC 25 – 0299D
185V_COL_AFC_B+115V_12V_24V_ABL_GND_NC_H
21. TV China
29″ BSC26 – 3606A
Col_B+125_NC_AFC_GND_H_ABL_T1_T2_T3
22.TV China
29″ BSC28 – N2329
Col_TP2_B+_GND_185V_NC_NC_ABL_H_AFC
23. TV SAMSUNG
29″ FUH29A001 /
SAMSUNG FLAT SLIM JF0501 – 91911 (FQH29A003)
21″ SLIM FQH21A004
COL_NC_B+125V_NC_200V_GND_H_-16,5V_+16,5V_ABL
24. LG
29″ 6174Z – 5003A
COL_B+115V_+14V_-14V_200V_GND_NC_28V_ABL_H
25. KONKA
14″ BSC25-2023S
COL_185V_B+_GND_AFC_14V_ABL_H_NC_NC
data pin flyback
FSV 14A001
(Samsung)
FSV 20A001
FCK 14A033
FCV 20A001
16,5V_NC_H_46V_185V_GROUND_NC_ABL_B+125V_COL
154-064P (Goldstar)
154-177B
FCK 14B047 (Akari)
COL_185V_B+_GROUND_16V_24V_40V_ABL_H_AFC
154-064G (Goldstar)
154-177E
COL_180V_92V_125VBOOST_24V_12V_GROUND_ABL_H_AFC
FCM 14A025 (Samsung, Blaupunkt)
FCM 1411L01
16,5V_AFC_H_24V_180V_GROUND_B+90V_ABL_125VBOOST_COL
DCF 1577 (Daewoo, Mitsuba)
DCF 2077
FSA 16012M
COL_B+_AFC_125VBOOST_16,5V_ABL_24V_GROUND_180V_H
FTK 14B011 (Aiwa)
COL_B+_25V_GROUND_180V_H_ABL_GROUND_AFC_15V
FCK 1411E10A (Etron)
190V_COL_NC_B+_NC_24V_ABL_GROUND_15V_H
JF 0208-0208C (Solitron)
COL_B+_GROUND_185V_H_ABL_GROUND_15V_AFC_24V
FSV 20A001
FCK 14A033
FCV 20A001
16,5V_NC_H_46V_185V_GROUND_NC_ABL_B+125V_COL
154-064P (Goldstar)
154-177B
FCK 14B047 (Akari)
COL_185V_B+_GROUND_16V_24V_40V_ABL_H_AFC
154-064G (Goldstar)
154-177E
COL_180V_92V_125VBOOST_24V_12V_GROUND_ABL_H_AFC
FCM 14A025 (Samsung, Blaupunkt)
FCM 1411L01
16,5V_AFC_H_24V_180V_GROUND_B+90V_ABL_125VBOOST_COL
DCF 1577 (Daewoo, Mitsuba)
DCF 2077
FSA 16012M
COL_B+_AFC_125VBOOST_16,5V_ABL_24V_GROUND_180V_H
FTK 14B011 (Aiwa)
COL_B+_25V_GROUND_180V_H_ABL_GROUND_AFC_15V
FCK 1411E10A (Etron)
190V_COL_NC_B+_NC_24V_ABL_GROUND_15V_H
JF 0208-0208C (Solitron)
COL_B+_GROUND_185V_H_ABL_GROUND_15V_AFC_24V
JF 0208-0210B
(Sansui)
JF 0501-0501
COL_B+_180V_14V_24V_H_GROUND_ABL_AFC_NC
FCM 14B014N (Polytron, Digitec)
FCM 20B061N
JF 0601-19577
COL_B+_GROUND_200V_NC_H_NC_ABL+12v_-12v
JF 0501-1206 (Sansui)
COL_B+_180V_16V_25V_H_GROUND_ABL_AFC_NC
L40B17100 (Sanyo)
COL_B+_NC_180V_AFC_GROUND_ABL_NC_H_GROUND
L40B09000 (Sanyo)
COL_B+_NC_AFC_GROUND_H_ABL_16V_NC_180V
L40B05500 (Sanyo)
COL_B+_NC_AFC_GROUND_H_GROUND_NC_NC_ABL
L40B09001 (Sanyo)
COL_B+_NC_AFC_GROUND_H_ABL_NC_NC_180V
6174Z-6040C (LG)
BSC 23-N0107
COL_185V_B+_GROUND_-14V_+14V_GROUND_ABL_H_AFC
BSC 24-08B (Tv China)
BSC 24-01N362
BSC 25-4803
BSC 25-N1616
BSC 25-0106
BSC 24-09G
COL_B+_NC_AFC_GROUND_H_ABL_NC
BSC 25-T1010A (Tv China)
BSC 24-01N4014K
BSC 25-09N21A
BSC 25-09N20E
TEP_COL_TEP_B+_TEP_TEP_GROUND_H_ABL_180V
BSC 60HZ (Changhong)
COL_B+_190V_GROUND_11V_16V_45V_ABL_H_AFC
BSC 24-2231HC (Panda)
COL_B+_46V_16V_GROUND_AFC_ABL_H_180V_NC
BSC 65A (Changhong)
COL_B+_190V_GROUND_NC_NC_14,5V_ABL_H_AFC
TFB 4067BD (Toshiba)
TFB 4125CH
TFB 4122HY/ES/CS/DY
BSC 23-N0102
COL_B+_185V_GROUND_NC_24V_12V_ABL_H_AFC
FCK 14A028 (Fuji Electric)
NC_B+_14V_24V_H_GROUND_ABL_180V_B+_COL
154-189C (Fuji Electric)
154-277C
FCM 20B027
COL_B+_180V_14V_22V_H_GROUND_ABL_AFC_NC
FUY 20C009 (Akari)
COL_180V_B+_GROUND_NC_24V_NC_ABL_H_AFC
FCK 14A006 (Digitec, Polytron, OK)
FCM 2015HE
FCM 14A032
KFS 60844A
NC_NC_GROUND_185V_15V_H_24V_ABL_B+_COL_
154-138K (Etron)
154-182H
190V_NC_COL_AFC_B+_43V_ABL_GROUND_12V_H
CF 0801 (Fujitec)
COL_B+180V_15V_24V_H_GROUND_ABL_NC_NC
JF 0501-0501
COL_B+_180V_14V_24V_H_GROUND_ABL_AFC_NC
FCM 14B014N (Polytron, Digitec)
FCM 20B061N
JF 0601-19577
COL_B+_GROUND_200V_NC_H_NC_ABL+12v_-12v
JF 0501-1206 (Sansui)
COL_B+_180V_16V_25V_H_GROUND_ABL_AFC_NC
L40B17100 (Sanyo)
COL_B+_NC_180V_AFC_GROUND_ABL_NC_H_GROUND
L40B09000 (Sanyo)
COL_B+_NC_AFC_GROUND_H_ABL_16V_NC_180V
L40B05500 (Sanyo)
COL_B+_NC_AFC_GROUND_H_GROUND_NC_NC_ABL
L40B09001 (Sanyo)
COL_B+_NC_AFC_GROUND_H_ABL_NC_NC_180V
6174Z-6040C (LG)
BSC 23-N0107
COL_185V_B+_GROUND_-14V_+14V_GROUND_ABL_H_AFC
BSC 24-08B (Tv China)
BSC 24-01N362
BSC 25-4803
BSC 25-N1616
BSC 25-0106
BSC 24-09G
COL_B+_NC_AFC_GROUND_H_ABL_NC
BSC 25-T1010A (Tv China)
BSC 24-01N4014K
BSC 25-09N21A
BSC 25-09N20E
TEP_COL_TEP_B+_TEP_TEP_GROUND_H_ABL_180V
BSC 60HZ (Changhong)
COL_B+_190V_GROUND_11V_16V_45V_ABL_H_AFC
BSC 24-2231HC (Panda)
COL_B+_46V_16V_GROUND_AFC_ABL_H_180V_NC
BSC 65A (Changhong)
COL_B+_190V_GROUND_NC_NC_14,5V_ABL_H_AFC
TFB 4067BD (Toshiba)
TFB 4125CH
TFB 4122HY/ES/CS/DY
BSC 23-N0102
COL_B+_185V_GROUND_NC_24V_12V_ABL_H_AFC
FCK 14A028 (Fuji Electric)
NC_B+_14V_24V_H_GROUND_ABL_180V_B+_COL
154-189C (Fuji Electric)
154-277C
FCM 20B027
COL_B+_180V_14V_22V_H_GROUND_ABL_AFC_NC
FUY 20C009 (Akari)
COL_180V_B+_GROUND_NC_24V_NC_ABL_H_AFC
FCK 14A006 (Digitec, Polytron, OK)
FCM 2015HE
FCM 14A032
KFS 60844A
NC_NC_GROUND_185V_15V_H_24V_ABL_B+_COL_
154-138K (Etron)
154-182H
190V_NC_COL_AFC_B+_43V_ABL_GROUND_12V_H
CF 0801 (Fujitec)
COL_B+180V_15V_24V_H_GROUND_ABL_NC_NC
CF 0854 (Fuji
Electric, Siera)
CF 0582
COL_B+_GROUND_AFC_185V_H_25V_15V_GROUND_ABL
FSA 28027M (Fuji Electric)
COL_NC_NC_123V_12V_ABL_25V_GROUND_185V_H
BSC 24-01N4009A (Tv China)
COL_NC_B+_GROUND_NC_TEP_NC_ABL_H_AFC
BSC 22-2314H (Fujitec)
COL_B+_180V_15V_24V_AFC_GROUND_ABL_NC_NC
BSC 22-01N40J (Tv China)
COL_180V_115V_GROUND_22V_16V_ABL_H_NC_NC
F 0193 PEN1-SA (Sharp)
F 0194 PEN1-SA
COL_B+_GROUND_42V_12V_AFC_185V_GROUND_H_ABL
(cat: teg 12v pada FBT F0194= 16V)
F 0042PE-M (Sharp)
15V_COL_24V_B+_ABL_AFC_GROUND_NC_180V_H
F 0063PE-M (Sharp)
F 0067PE-M
COL_B+_24V_12V_NC_AFC_GROUND_H_185V_ABL
F 0102KM-SA (Sharp)
COL_B+_GROUND_24V_14V_AFC_180V_GROUND_H_ABL
FA 060WJ-SA (Sharp)
COL_B+_GROUND_NC_12V_(AFC/-12V)_185V_GROUND_H_ABL
FA 061WJ-SA (Sharp)
COL_(B+130V)_GROUND_24V_12V_AFC_185V_GROUND_H_ABL
FA 113WJ-B (Sharp)
COL_B+_GROUND_24V_NC_AFC_180V_GROUND_H_ABL
FA 122WJ-B (Sharp)
COL_(B+130V)_GROUND_24V_NC_AFC_180V_GROUND_H_ABL
FTK 14A004P (Samsung)
16,5V_AFC_H_24V_180V_GROUND_NC_ABL_(B+125V)_COL
154-279C (Siera, Fuji Electric)
COL_(B+135V)_200V_GROUND_GROUND_25V_16V_ABL_H_NC
BSC 25-N0363 (LG 21FU6RL/Pearl Black)
COL_180V_B+_GROUND_INNER_26V_NC_ABL_H_AFC
8-598-858-00 (Sony)
8-598-11
COL_B+_200V_H_GROUND_-16,5V_GROUND_+16,5V_NC_ABL
QQH0132-001 (JVC AV-1438)
COL_B+_40V_NC_25V_GROUND_H_ABL_180V_GROUND
JF 0501-19539 (Polytron MX5262RF/Zepelin)
COL_B+_GROUND_185V_NC_H_25V_ABL_12V_Hpulse
BSC 25-1194D030 (SANKEN)
FSV 20A099
16,5V_24V_H_46V_180V_GROUND_NC_ABL_B+125V_COL
FTK 14A004F(S) (SAMSUNG)
16,5V_24V_H_-16,5V_185V_GROUND_NC_ABL_B+125V_COL
8-597-041-20 (SONY KV-LS21M61)
COL_B+_200V_H_GROUND_(-13V)_GROUND_(+13V)_NC_ABL
FUH 29VH04 (POLYTRON PS30UV25BM) U-SLIM
COL_B+(135)_GROUND_185V_NC_H_BCL_+12V_-12V
JF0501-32611 (SANYO CG21SF1T) FLAT 21
COL_B+(125)_NC_185V_AFC_ABL_ABL_NC_H_GROUND
CF 0582
COL_B+_GROUND_AFC_185V_H_25V_15V_GROUND_ABL
FSA 28027M (Fuji Electric)
COL_NC_NC_123V_12V_ABL_25V_GROUND_185V_H
BSC 24-01N4009A (Tv China)
COL_NC_B+_GROUND_NC_TEP_NC_ABL_H_AFC
BSC 22-2314H (Fujitec)
COL_B+_180V_15V_24V_AFC_GROUND_ABL_NC_NC
BSC 22-01N40J (Tv China)
COL_180V_115V_GROUND_22V_16V_ABL_H_NC_NC
F 0193 PEN1-SA (Sharp)
F 0194 PEN1-SA
COL_B+_GROUND_42V_12V_AFC_185V_GROUND_H_ABL
(cat: teg 12v pada FBT F0194= 16V)
F 0042PE-M (Sharp)
15V_COL_24V_B+_ABL_AFC_GROUND_NC_180V_H
F 0063PE-M (Sharp)
F 0067PE-M
COL_B+_24V_12V_NC_AFC_GROUND_H_185V_ABL
F 0102KM-SA (Sharp)
COL_B+_GROUND_24V_14V_AFC_180V_GROUND_H_ABL
FA 060WJ-SA (Sharp)
COL_B+_GROUND_NC_12V_(AFC/-12V)_185V_GROUND_H_ABL
FA 061WJ-SA (Sharp)
COL_(B+130V)_GROUND_24V_12V_AFC_185V_GROUND_H_ABL
FA 113WJ-B (Sharp)
COL_B+_GROUND_24V_NC_AFC_180V_GROUND_H_ABL
FA 122WJ-B (Sharp)
COL_(B+130V)_GROUND_24V_NC_AFC_180V_GROUND_H_ABL
FTK 14A004P (Samsung)
16,5V_AFC_H_24V_180V_GROUND_NC_ABL_(B+125V)_COL
154-279C (Siera, Fuji Electric)
COL_(B+135V)_200V_GROUND_GROUND_25V_16V_ABL_H_NC
BSC 25-N0363 (LG 21FU6RL/Pearl Black)
COL_180V_B+_GROUND_INNER_26V_NC_ABL_H_AFC
8-598-858-00 (Sony)
8-598-11
COL_B+_200V_H_GROUND_-16,5V_GROUND_+16,5V_NC_ABL
QQH0132-001 (JVC AV-1438)
COL_B+_40V_NC_25V_GROUND_H_ABL_180V_GROUND
JF 0501-19539 (Polytron MX5262RF/Zepelin)
COL_B+_GROUND_185V_NC_H_25V_ABL_12V_Hpulse
BSC 25-1194D030 (SANKEN)
FSV 20A099
16,5V_24V_H_46V_180V_GROUND_NC_ABL_B+125V_COL
FTK 14A004F(S) (SAMSUNG)
16,5V_24V_H_-16,5V_185V_GROUND_NC_ABL_B+125V_COL
8-597-041-20 (SONY KV-LS21M61)
COL_B+_200V_H_GROUND_(-13V)_GROUND_(+13V)_NC_ABL
FUH 29VH04 (POLYTRON PS30UV25BM) U-SLIM
COL_B+(135)_GROUND_185V_NC_H_BCL_+12V_-12V
JF0501-32611 (SANYO CG21SF1T) FLAT 21
COL_B+(125)_NC_185V_AFC_ABL_ABL_NC_H_GROUND
Sharp picollo
14″ bsc26 – 2631s / fa 060 wj – sa
21″ jf0501-32601
Col_b+125v_gnd_24v_12v_afc_185v_gnd_ht_abl
F 0193 PEN1-SA (Sharp)
F 0194 PEN1-SA
COL_B+_Ground_42V_12V_AFC_185V_Ground_Ht_ABL
(cat: teg 12v pada FBT F0194= 16V)
F 0042PE-M (Sharp)
15V_COL_24V_B+_ABL_AFC_Gnd_NC_180V_Ht
F 0063PE-M (Sharp)
F 0067PE-M
COL_B+_24V_12V_NC_AFC_GROUND_Ht_185V_ABL
F 0102KM-SA (Sharp)
COL_B+_GROUND_24V_14V_AFC_180V_GROUND_Ht_ABL
FA 060WJ-SA (Sharp)
COL_B+_GROUND_NC_12V_(AFC/-12V)_185V_GROUND_H_ABL
FA 061WJ-SA (Sharp)
COL_(B+130V)_GROUND_24V_12V_AFC_185V_GROUND_Ht_ABL
FA 113WJ-B (Sharp)
COL_B+_GROUND_24V_NC_AFC_180V_GROUND_H_ABL
FA 122WJ-B (Sharp)
COL_(B+130V)_GROUND_24V_NC_AFC_180V_GROUND_Ht_ABL
154-279C (Siera, Fuji Electric)
COL_(B+135V)_200V_GROUND_GROUND_25V_16V_ABL_Ht_NC
BSC 25-N0363 (LG 21FU6RL/Pearl Black)
COL_180V_B+_Gnd_INNER_26V_NC_ABL_Ht_AFC
8-598-858-00 (Sony)
8-598-11
COL_B+_200V_Ht_Gnd_16,5V_Gnd_+16,5V_NC_ABL
QQH0132-001 (JVC AV-1438)
COL_B+_40V_NC_25V_Gnd_Ht_ABL_180V_GROUND
Lg ultra slim
21″ bsc25-n0363
29″ bsc26-n2138
col_b+_+14v_-14v_200v(video)_gnd_inner_26v_abl_ht
BSC 25-1194D030 (SANKEN)
FSV 20A099
16,5V_24V_Ht_46V_180V_Gnd_NC_ABL_B+125V_COL
FTK 14A004F(S) (SAMSUNG)
16,5V_24V_Ht_16,5V_185V_GROUND_NC_ABL_B+125V_COL
8-597-041-20 (SONY KV-LS21M61)
COL_B+_200V_Ht_GROUND_(-13V)_GROUND_(+13V)_NC_ABL
FUH 29VH04 (POLYTRON PS30UV25BM) U-SLIM
COL_B+(135)_GROUND_185V_NC_Ht_BCL_+12V_-12V
JF0501-32611 (SANYO CG21SF1T) FLAT 21
COL_B+(125)_NC_185V_AFC_ABL_ABL_NC_Ht_GROUND
sa 16012m
dcf 2077a
dcf 1577
fsa 16012m
c – b+ – afc _ boost-up _ 16,5 _ abl _ 25v _ gnd _ 185v _ht
Jf 0501-1206
c _ b+ _ 180v _ 16v _ 25v _ ht _ gnd _ abl _ afc _ nc
Jf0601-19577 (polytron)
c_b+_gnd_200v_nc_ht_nc_abl_+12_-12
Fck 14a006
fcm 2015he
fcm 14a032
c _ b+ _ abl _ 24v _ ht _ 16v _ 180v _ gnd _ nc _ abl
Fcm-20b061n (polytron)
c_b+_gnd_185_nc_ht_nc_abl_+12_-12
Fuy-20c009 (akari)
c_180_b+_gnd_nc_24_nc_abl_ht_afc
Bsc 65a
c _ b+ _ 190v _ gnd _ nc _ nc _ 14,5v _ abl _ ht _ afc
154 – 132a
154 – 132c
c _ 40v _ 16,5 _ ht _ gnd _ b+ _ 180v _ gnd _ abl _40v
Fck 1411 l 01
fcm 14a025
c _ boost-up _ abl _ b+ _ gnd _ 180v _ 24v _ ht _ afc _ 16,5v
154 189h
154 277c
fcm 20b027
c _ b+ _ 180v _ 16v _ 24v _ ht _ gnd _ abl _ afc _ nc
Mc – fbc-015
lce cf0854
c _ b+ _ gnd _ afc _ 185 _ ht _ 25 _ 15 _ gnd _ abl
Fsv – 20a001
fck – 14a033
fsv – 14a001
c _ b+125v _ abl _ nc _ gnd _ 185 _ 46 _ ht_ nc _ 16,5
Ftk-14a004p (samsung)
c_b+125v_abl_ nc_ gnd_ 180v_24v_ht_afc_16,5
8-598-858–00
8-598-811
c _ b+135v _ 200v _ ht _ gnd _ -16,5(vertkl) _ gnd(vertkl) _ +16,5(vertkl) _ nc _ abl
Tfb 4125 dy (thosiba)
tfb 4125 hy
c _ b+ _ 180 _ gnd _ nc _ 26v _ 12v _ abl _ ht_ afc
Bsc 22-01-06
bsc 25-48
bsc 25-4803
bsc 24-01n362
c _ b+ _ nc _ afc _ gnd _ ht _abl _ nc
Bsc 24-01n4014k
bsc 25-t1010a
bsc 25-09n21a
bsc 25-05n2110a
bsc 25-09n20e
tep _ c _ tep _ b+ _ tep _ tep _ gnd _ ht _ abl _ 180v
Dcf 2217j
c _ b+ _ afc _ boost-up _ 16,5 _ 24 _ abl _ gnd _ 200v _ ht
FSV 14A001 (Samsung)
FSV 20A001
FCK 14A033
FCV 20A001
16,5V_NC_Ht_46V_185V_GROUND_NC_ABL_B+125V_COL
154-064P (Goldstar)
154-177B
FCK 14B047 (Akari)
COL_185V_B+_GROUND_16V_24V_40V_ABL_Ht_AFC
154-064G (Goldstar)
154-177E
COL_180V_92V_125VBOOST_24V_12V_GROUND_ABL_Ht_AFC
FCM 14A025 (Samsung, Blaupunkt)
FCM 1411L01
16,5V_AFC_Ht_24V_180V_GROUND_B+90V_ABL_125VBOOST_COL
DCF 1577 (Daewoo, Mitsuba)
DCF 2077
FSA 16012M
COL_B+_AFC_125VBOOST_16,5V_ABL_24V_GROUND_180V_Ht
FTK 14B011 (Aiwa)
COL_B+_25V_GROUND_180V_Ht_ABL_GROUND_AFC_15V
FCK 1411E10A (Etron)
190V_COL_NC_B+_NC_24V_ABL_GROUND_15V_Ht
JF 0208-0208C (Solitron)
COL_B+_GROUND_185V_Ht_ABL_GROUND_15V_AFC_24V
JF 0208-0210B (Sansui)
JF 0501-0501
COL_B+_180V_14V_24V_Ht_GROUND_ABL_AFC_NC
FCM 14B014N (Polytron, Digitec)
FCM 20B061N
FCM 20B062N Ã 21″ flat
JF 0601-19577
COL_B+_GROUND_200V_NC_Ht_NC_ABL+12v_-12v
Polytron lama
14″ fck 14a006
20″ fcm2015h
20″ ftk21r002
Nc_nc_gnd_185v_16v_ht_24v_abl_b+_col
JF 0501-19539 (Polytron MX5262RF/Zepelin)
COL_B+_GROUND_185V_NC_H_25V_ABL_12V_Hpulse
JF 0501-1206 (Sansui)
COL_B+_180V_16V_25V_Ht_GROUND_ABL_AFC_NC
L40B17100 (Sanyo)
COL_B+_NC_180V_AFC_GROUND_ABL_NC_Ht_GROUND
L40B09000 (Sanyo)
COL_B+_NC_AFC_GROUND_Ht_ABL_16V_NC_180V
L40B05500 (Sanyo)
COL_B+_NC_AFC_GROUND_Ht_GROUND_NC_NC_ABL
L40B09001 (Sanyo)
COL_B+_NC_AFC_GROUND_Ht_ABL_NC_NC_180V
6174Z-6040C (LG)
BSC 23-N0107
COL_185V_B+_GROUND_14V_+14V_GROUND_ABL_Ht_AFC
BSC 24-08B (Tv China)
BSC 24-01N362
BSC 25-4803
BSC 25-N1616
BSC 25-0106
COL_B+_NC_AFC_GROUND_Ht_ABL_NC
Tv china
Bsc 25 z 603f
bsc 25 – 4813a
Tp1_col_tp2_b+_tp3_tp4_gnd_ht_abl_nc
Tv china
Bsc 25 – 2004pr
Col_b+_nc_afc_gnd_ht_abl_nc_tp1_tp2
BSC 25-T1010A (Tv China)
BSC 24-01N4014K
BSC 25-09N21A
BSC 25-09N20E
TEP_COL_TEP_B+_TEP_TEP_GROUND_Ht_ABL_180V
bsc24-01n4014k
bsc25-t1010a
tp1_col_tp2_b+_tp3_t4_gnd_ht_abl_180v
Tv china
29″ bsc26 – 3606a
Col_b+125_nc_afc_gnd_ht_abl_t1_t2_t3
tv china
29″ bsc28 – n2329
Col_tp2_b+_gnd_185v_nc_nc_abl_ht_afc
BSC 60HZ (Changhong)
COL_B+_190V_GROUND_11V_16V_45V_ABL_Ht_AFC
BSC 24-2231HC (Panda)
COL_B+_46V_16V_GROUND_AFC_ABL_Ht_180V_NC
BSC 65A (Changhong)
COL_B+_190V_GROUND_NC_NC_14,5V_ABL_Ht_AFC
TFB 4067BD (Toshiba)
TFB 4125CH
TFB 4122HY/ES/CS/DY
BSC 23-N0102
COL_B+_185V_GROUND_NC_24V_12V_ABL_Ht_AFC
FCK 14A028 (Fuji Electric)
NC_B+_14V_24V_Ht_GROUND_ABL_180V_B+_COL
154-189C (Fuji Electric)
154-277C
FCM 20B027
COL_B+_180V_14V_22V_Ht_GROUND_ABL_AFC_NC
FUY 20C009 (Akari)
COL_180V_B+_GROUND_NC_24V_NC_ABL_Ht_AFC
FCK 14A006 (Digitec, Polytron, OK)
FCM 2015HE
FCM 14A032
KFS 60844A
NC_NC_GROUND_185V_15V_Ht_24V_ABL_B+_COL_
154-138K (Etron)
154-182H
190V_NC_COL_AFC_B+_43V_ABL_GROUND_12V_Ht
CF 0801 (Fujitec)
COL_B+180V_15V_24V_Ht_GROUND_ABL_NC_NC
CF 0854 (Fuji Electric, Siera)
CF 0582
COL_B+_GROUND_AFC_185V_Ht_25V_15V_GROUND_ABL
Polytron / digitec
20″ fcm 20 b 061n / jf 0501- 19577
Col_b+_gnd_nc_185v_ht_nc_abl_+12v_-12v
FSA 28027M (Fuji Electric)
COL_NC_NC_123V_12V_ABL_25V_GROUND_185V_Ht
Toshiba
14″ tfb 4067 bd
21″ tfb 4125ch
29″ tfb 4086a
Col_b+_185v_gnd_nc_24v_12v_abl_ht_afc
BSC 24-01N4009A (Tv China)
COL_NC_B+_GROUND_NC_TEP_NC_ABL_Ht_AFC
BSC 22-2314H (Fujitec)
COL_B+_180V_15V_24V_AFC_GROUND_ABL_NC_NC
BSC 22-01N40J (Tv China)
COL_180V_115V_GROUND_22V_16V_ABL_Ht_NC_NC
K 148 TC
C – 180v _ B+ – Gnd _ Afc _ 16v _ Abl _ Heater _ Nc _ Nc
FCG 2045 BL
Afc – 16,5v _ Heater _ Boost-up _ B+83v _ Gnd _ Nc _ C _ Abl _ 175v _ 24v
FCK 1411 L 01
FCM 14A025
C _ Boost-up _ Abl _ B+ _ Gnd _ 180v _ 24V _ Heater _ Afc _ 16,5v
MC – FBC-015
LCE CF0854
C _ B+ _ Gnd _ Afc _ 185 _ Heater _ 25 _ 15 _ Gnd _ Abl
TFB 4125 DY (thosiba)
TFB 4125 HY
C _ B+ _ 180 _ Gnd _ Nc _ 26v _ 12v _ Abl _ Heater _ Afc
JY0301-0206 tv china 29
C_B+_nc_afc_gnd_HT_abl_tep_tep_tep
DCF 2217J
C _ B+ _ afc _ boost-up _ 16,5 _ 24 _ abl _ gnd _ 200v _ heater
14″ bsc26 – 2631s / fa 060 wj – sa
21″ jf0501-32601
Col_b+125v_gnd_24v_12v_afc_185v_gnd_ht_abl
F 0193 PEN1-SA (Sharp)
F 0194 PEN1-SA
COL_B+_Ground_42V_12V_AFC_185V_Ground_Ht_ABL
(cat: teg 12v pada FBT F0194= 16V)
F 0042PE-M (Sharp)
15V_COL_24V_B+_ABL_AFC_Gnd_NC_180V_Ht
F 0063PE-M (Sharp)
F 0067PE-M
COL_B+_24V_12V_NC_AFC_GROUND_Ht_185V_ABL
F 0102KM-SA (Sharp)
COL_B+_GROUND_24V_14V_AFC_180V_GROUND_Ht_ABL
FA 060WJ-SA (Sharp)
COL_B+_GROUND_NC_12V_(AFC/-12V)_185V_GROUND_H_ABL
FA 061WJ-SA (Sharp)
COL_(B+130V)_GROUND_24V_12V_AFC_185V_GROUND_Ht_ABL
FA 113WJ-B (Sharp)
COL_B+_GROUND_24V_NC_AFC_180V_GROUND_H_ABL
FA 122WJ-B (Sharp)
COL_(B+130V)_GROUND_24V_NC_AFC_180V_GROUND_Ht_ABL
154-279C (Siera, Fuji Electric)
COL_(B+135V)_200V_GROUND_GROUND_25V_16V_ABL_Ht_NC
BSC 25-N0363 (LG 21FU6RL/Pearl Black)
COL_180V_B+_Gnd_INNER_26V_NC_ABL_Ht_AFC
8-598-858-00 (Sony)
8-598-11
COL_B+_200V_Ht_Gnd_16,5V_Gnd_+16,5V_NC_ABL
QQH0132-001 (JVC AV-1438)
COL_B+_40V_NC_25V_Gnd_Ht_ABL_180V_GROUND
Lg ultra slim
21″ bsc25-n0363
29″ bsc26-n2138
col_b+_+14v_-14v_200v(video)_gnd_inner_26v_abl_ht
BSC 25-1194D030 (SANKEN)
FSV 20A099
16,5V_24V_Ht_46V_180V_Gnd_NC_ABL_B+125V_COL
FTK 14A004F(S) (SAMSUNG)
16,5V_24V_Ht_16,5V_185V_GROUND_NC_ABL_B+125V_COL
8-597-041-20 (SONY KV-LS21M61)
COL_B+_200V_Ht_GROUND_(-13V)_GROUND_(+13V)_NC_ABL
FUH 29VH04 (POLYTRON PS30UV25BM) U-SLIM
COL_B+(135)_GROUND_185V_NC_Ht_BCL_+12V_-12V
JF0501-32611 (SANYO CG21SF1T) FLAT 21
COL_B+(125)_NC_185V_AFC_ABL_ABL_NC_Ht_GROUND
sa 16012m
dcf 2077a
dcf 1577
fsa 16012m
c – b+ – afc _ boost-up _ 16,5 _ abl _ 25v _ gnd _ 185v _ht
Jf 0501-1206
c _ b+ _ 180v _ 16v _ 25v _ ht _ gnd _ abl _ afc _ nc
Jf0601-19577 (polytron)
c_b+_gnd_200v_nc_ht_nc_abl_+12_-12
Fck 14a006
fcm 2015he
fcm 14a032
c _ b+ _ abl _ 24v _ ht _ 16v _ 180v _ gnd _ nc _ abl
Fcm-20b061n (polytron)
c_b+_gnd_185_nc_ht_nc_abl_+12_-12
Fuy-20c009 (akari)
c_180_b+_gnd_nc_24_nc_abl_ht_afc
Bsc 65a
c _ b+ _ 190v _ gnd _ nc _ nc _ 14,5v _ abl _ ht _ afc
154 – 132a
154 – 132c
c _ 40v _ 16,5 _ ht _ gnd _ b+ _ 180v _ gnd _ abl _40v
Fck 1411 l 01
fcm 14a025
c _ boost-up _ abl _ b+ _ gnd _ 180v _ 24v _ ht _ afc _ 16,5v
154 189h
154 277c
fcm 20b027
c _ b+ _ 180v _ 16v _ 24v _ ht _ gnd _ abl _ afc _ nc
Mc – fbc-015
lce cf0854
c _ b+ _ gnd _ afc _ 185 _ ht _ 25 _ 15 _ gnd _ abl
Fsv – 20a001
fck – 14a033
fsv – 14a001
c _ b+125v _ abl _ nc _ gnd _ 185 _ 46 _ ht_ nc _ 16,5
Ftk-14a004p (samsung)
c_b+125v_abl_ nc_ gnd_ 180v_24v_ht_afc_16,5
8-598-858–00
8-598-811
c _ b+135v _ 200v _ ht _ gnd _ -16,5(vertkl) _ gnd(vertkl) _ +16,5(vertkl) _ nc _ abl
Tfb 4125 dy (thosiba)
tfb 4125 hy
c _ b+ _ 180 _ gnd _ nc _ 26v _ 12v _ abl _ ht_ afc
Bsc 22-01-06
bsc 25-48
bsc 25-4803
bsc 24-01n362
c _ b+ _ nc _ afc _ gnd _ ht _abl _ nc
Bsc 24-01n4014k
bsc 25-t1010a
bsc 25-09n21a
bsc 25-05n2110a
bsc 25-09n20e
tep _ c _ tep _ b+ _ tep _ tep _ gnd _ ht _ abl _ 180v
Dcf 2217j
c _ b+ _ afc _ boost-up _ 16,5 _ 24 _ abl _ gnd _ 200v _ ht
FSV 14A001 (Samsung)
FSV 20A001
FCK 14A033
FCV 20A001
16,5V_NC_Ht_46V_185V_GROUND_NC_ABL_B+125V_COL
154-064P (Goldstar)
154-177B
FCK 14B047 (Akari)
COL_185V_B+_GROUND_16V_24V_40V_ABL_Ht_AFC
154-064G (Goldstar)
154-177E
COL_180V_92V_125VBOOST_24V_12V_GROUND_ABL_Ht_AFC
FCM 14A025 (Samsung, Blaupunkt)
FCM 1411L01
16,5V_AFC_Ht_24V_180V_GROUND_B+90V_ABL_125VBOOST_COL
DCF 1577 (Daewoo, Mitsuba)
DCF 2077
FSA 16012M
COL_B+_AFC_125VBOOST_16,5V_ABL_24V_GROUND_180V_Ht
FTK 14B011 (Aiwa)
COL_B+_25V_GROUND_180V_Ht_ABL_GROUND_AFC_15V
FCK 1411E10A (Etron)
190V_COL_NC_B+_NC_24V_ABL_GROUND_15V_Ht
JF 0208-0208C (Solitron)
COL_B+_GROUND_185V_Ht_ABL_GROUND_15V_AFC_24V
JF 0208-0210B (Sansui)
JF 0501-0501
COL_B+_180V_14V_24V_Ht_GROUND_ABL_AFC_NC
FCM 14B014N (Polytron, Digitec)
FCM 20B061N
FCM 20B062N Ã 21″ flat
JF 0601-19577
COL_B+_GROUND_200V_NC_Ht_NC_ABL+12v_-12v
Polytron lama
14″ fck 14a006
20″ fcm2015h
20″ ftk21r002
Nc_nc_gnd_185v_16v_ht_24v_abl_b+_col
JF 0501-19539 (Polytron MX5262RF/Zepelin)
COL_B+_GROUND_185V_NC_H_25V_ABL_12V_Hpulse
JF 0501-1206 (Sansui)
COL_B+_180V_16V_25V_Ht_GROUND_ABL_AFC_NC
L40B17100 (Sanyo)
COL_B+_NC_180V_AFC_GROUND_ABL_NC_Ht_GROUND
L40B09000 (Sanyo)
COL_B+_NC_AFC_GROUND_Ht_ABL_16V_NC_180V
L40B05500 (Sanyo)
COL_B+_NC_AFC_GROUND_Ht_GROUND_NC_NC_ABL
L40B09001 (Sanyo)
COL_B+_NC_AFC_GROUND_Ht_ABL_NC_NC_180V
6174Z-6040C (LG)
BSC 23-N0107
COL_185V_B+_GROUND_14V_+14V_GROUND_ABL_Ht_AFC
BSC 24-08B (Tv China)
BSC 24-01N362
BSC 25-4803
BSC 25-N1616
BSC 25-0106
COL_B+_NC_AFC_GROUND_Ht_ABL_NC
Tv china
Bsc 25 z 603f
bsc 25 – 4813a
Tp1_col_tp2_b+_tp3_tp4_gnd_ht_abl_nc
Tv china
Bsc 25 – 2004pr
Col_b+_nc_afc_gnd_ht_abl_nc_tp1_tp2
BSC 25-T1010A (Tv China)
BSC 24-01N4014K
BSC 25-09N21A
BSC 25-09N20E
TEP_COL_TEP_B+_TEP_TEP_GROUND_Ht_ABL_180V
bsc24-01n4014k
bsc25-t1010a
tp1_col_tp2_b+_tp3_t4_gnd_ht_abl_180v
Tv china
29″ bsc26 – 3606a
Col_b+125_nc_afc_gnd_ht_abl_t1_t2_t3
tv china
29″ bsc28 – n2329
Col_tp2_b+_gnd_185v_nc_nc_abl_ht_afc
BSC 60HZ (Changhong)
COL_B+_190V_GROUND_11V_16V_45V_ABL_Ht_AFC
BSC 24-2231HC (Panda)
COL_B+_46V_16V_GROUND_AFC_ABL_Ht_180V_NC
BSC 65A (Changhong)
COL_B+_190V_GROUND_NC_NC_14,5V_ABL_Ht_AFC
TFB 4067BD (Toshiba)
TFB 4125CH
TFB 4122HY/ES/CS/DY
BSC 23-N0102
COL_B+_185V_GROUND_NC_24V_12V_ABL_Ht_AFC
FCK 14A028 (Fuji Electric)
NC_B+_14V_24V_Ht_GROUND_ABL_180V_B+_COL
154-189C (Fuji Electric)
154-277C
FCM 20B027
COL_B+_180V_14V_22V_Ht_GROUND_ABL_AFC_NC
FUY 20C009 (Akari)
COL_180V_B+_GROUND_NC_24V_NC_ABL_Ht_AFC
FCK 14A006 (Digitec, Polytron, OK)
FCM 2015HE
FCM 14A032
KFS 60844A
NC_NC_GROUND_185V_15V_Ht_24V_ABL_B+_COL_
154-138K (Etron)
154-182H
190V_NC_COL_AFC_B+_43V_ABL_GROUND_12V_Ht
CF 0801 (Fujitec)
COL_B+180V_15V_24V_Ht_GROUND_ABL_NC_NC
CF 0854 (Fuji Electric, Siera)
CF 0582
COL_B+_GROUND_AFC_185V_Ht_25V_15V_GROUND_ABL
Polytron / digitec
20″ fcm 20 b 061n / jf 0501- 19577
Col_b+_gnd_nc_185v_ht_nc_abl_+12v_-12v
FSA 28027M (Fuji Electric)
COL_NC_NC_123V_12V_ABL_25V_GROUND_185V_Ht
Toshiba
14″ tfb 4067 bd
21″ tfb 4125ch
29″ tfb 4086a
Col_b+_185v_gnd_nc_24v_12v_abl_ht_afc
BSC 24-01N4009A (Tv China)
COL_NC_B+_GROUND_NC_TEP_NC_ABL_Ht_AFC
BSC 22-2314H (Fujitec)
COL_B+_180V_15V_24V_AFC_GROUND_ABL_NC_NC
BSC 22-01N40J (Tv China)
COL_180V_115V_GROUND_22V_16V_ABL_Ht_NC_NC
K 148 TC
C – 180v _ B+ – Gnd _ Afc _ 16v _ Abl _ Heater _ Nc _ Nc
FCG 2045 BL
Afc – 16,5v _ Heater _ Boost-up _ B+83v _ Gnd _ Nc _ C _ Abl _ 175v _ 24v
FCK 1411 L 01
FCM 14A025
C _ Boost-up _ Abl _ B+ _ Gnd _ 180v _ 24V _ Heater _ Afc _ 16,5v
MC – FBC-015
LCE CF0854
C _ B+ _ Gnd _ Afc _ 185 _ Heater _ 25 _ 15 _ Gnd _ Abl
TFB 4125 DY (thosiba)
TFB 4125 HY
C _ B+ _ 180 _ Gnd _ Nc _ 26v _ 12v _ Abl _ Heater _ Afc
JY0301-0206 tv china 29
C_B+_nc_afc_gnd_HT_abl_tep_tep_tep
DCF 2217J
C _ B+ _ afc _ boost-up _ 16,5 _ 24 _ abl _ gnd _ 200v _ heater
154-064P
154-177B
FCK-14B047
C _ 180v _ B+ _ Gnd _ 16v _ 24v _ 40v _ Abl _ Heater _ Afc
154-177B
FCK-14B047
C _ 180v _ B+ _ Gnd _ 16v _ 24v _ 40v _ Abl _ Heater _ Afc
F 0101KM-SA
F 0141 PE-M
C _ B+ _ Gnd _ 24v _ 16v _ Afc _ 180v _ Gnd _ Heater _ Abl
K 148 TC
C – 180v _ B+ – Gnd _ Afc _ 16v _ Abl _ Heater _ Nc _ Nc
FCG 2045 BL
Afc – 16,5v _ Heater _ Boost-up _ B+83v _ Gnd _ Nc _ C _ Abl _ 175v _ 24v
FSA 16012M
DCF 2077A
DCF 1577
FSA 16012M
C – B+ – Afc _ Boost-up _ 16,5 _ Abl _ 25v _ Gnd _ 185v _Heater
JF 0501-1206
C _ B+ _ 180v _ 16v _ 25v _ Heater _ Gnd _ Abl _ Afc _ Nc
JF0601-19577 (polytron)
C_B+_gnd_200v_nc_Ht_nc_abl_+12_-12
FCK 14A006
FCM 2015HE
FCM 14A032
C _ B+ _ Abl _ 24v _ Heater _ 16v _ 180v _ Gnd _ Nc _ Abl
FCM-20B061N (polytron)
c_B+_gnd_185_nc_Ht_Nc_abl_+12_-12
FUY-20C009 (akari)
C_180_B+_gnd_nc_24_nc_abl_Ht_afc
BSC 65A
C _ B+ _ 190v _ Gnd _ Nc _ Nc _ 14,5v _ Abl _ Heater _ Afc
154 – 132A
154 – 132C
C _ 40v _ 16,5 _ Heater _ Gnd _ B+ _ 180v _ Gnd _ Abl _40v
FCK 1411 L 01
FCM 14A025
C _ Boost-up _ Abl _ B+ _ Gnd _ 180v _ 24V _ Heater _ Afc _ 16,5v
154 189H
154 277C
FCM 20B027
C _ B+ _ 180v _ 16v _ 24v _ Heater _ Gnd _ Abl _ Afc _ Nc
MC – FBC-015
LCE CF0854
C _ B+ _ Gnd _ Afc _ 185 _ Heater _ 25 _ 15 _ Gnd _ Abl
FSV – 20A001
FCK – 14A033
FSV – 14A001
C _ B+125v _ Abl _ Nc _ Gnd _ 185 _ 46 _ Heater _ Nc _ 16,5
FTK-14A004P (samsung)
C_B+125v_ABL_ Nc_ Gnd_ 180v_24v_Ht_afc_16,5
8-598-858–00
8-598-811
C _ B+135v _ 200v _ Heater _ Gnd _ -16,5(vertkl) _ Gnd(vertkl) _ +16,5(vertkl) _ Nc _ Abl
TFB 4125 DY (thosiba)
TFB 4125 HY
C _ B+ _ 180 _ Gnd _ Nc _ 26v _ 12v _ Abl _ Heater _ Afc
BSC 22-01-06
BSC 25-48
BSC 25-4803
BSC 24-01N362
C _ B+ _ Nc _ afc _ gnd _ Heater _abl _ nc
BSC 24-01N4014K
BSC 25-T1010A
BSC 25-09N21A
BSC 25-05N2110A
BSC 25-09N20E
Tep _ C _ Tep _ B+ _ Tep _ Tep _ gnd _ Heater _ abl _ 180v
DCF 2217J
C _ B+ _ afc _ boost-up _ 16,5 _ 24 _ abl _ gnd _ 200v _ heater
F 0141 PE-M
C _ B+ _ Gnd _ 24v _ 16v _ Afc _ 180v _ Gnd _ Heater _ Abl
K 148 TC
C – 180v _ B+ – Gnd _ Afc _ 16v _ Abl _ Heater _ Nc _ Nc
FCG 2045 BL
Afc – 16,5v _ Heater _ Boost-up _ B+83v _ Gnd _ Nc _ C _ Abl _ 175v _ 24v
FSA 16012M
DCF 2077A
DCF 1577
FSA 16012M
C – B+ – Afc _ Boost-up _ 16,5 _ Abl _ 25v _ Gnd _ 185v _Heater
JF 0501-1206
C _ B+ _ 180v _ 16v _ 25v _ Heater _ Gnd _ Abl _ Afc _ Nc
JF0601-19577 (polytron)
C_B+_gnd_200v_nc_Ht_nc_abl_+12_-12
FCK 14A006
FCM 2015HE
FCM 14A032
C _ B+ _ Abl _ 24v _ Heater _ 16v _ 180v _ Gnd _ Nc _ Abl
FCM-20B061N (polytron)
c_B+_gnd_185_nc_Ht_Nc_abl_+12_-12
FUY-20C009 (akari)
C_180_B+_gnd_nc_24_nc_abl_Ht_afc
BSC 65A
C _ B+ _ 190v _ Gnd _ Nc _ Nc _ 14,5v _ Abl _ Heater _ Afc
154 – 132A
154 – 132C
C _ 40v _ 16,5 _ Heater _ Gnd _ B+ _ 180v _ Gnd _ Abl _40v
FCK 1411 L 01
FCM 14A025
C _ Boost-up _ Abl _ B+ _ Gnd _ 180v _ 24V _ Heater _ Afc _ 16,5v
154 189H
154 277C
FCM 20B027
C _ B+ _ 180v _ 16v _ 24v _ Heater _ Gnd _ Abl _ Afc _ Nc
MC – FBC-015
LCE CF0854
C _ B+ _ Gnd _ Afc _ 185 _ Heater _ 25 _ 15 _ Gnd _ Abl
FSV – 20A001
FCK – 14A033
FSV – 14A001
C _ B+125v _ Abl _ Nc _ Gnd _ 185 _ 46 _ Heater _ Nc _ 16,5
FTK-14A004P (samsung)
C_B+125v_ABL_ Nc_ Gnd_ 180v_24v_Ht_afc_16,5
8-598-858–00
8-598-811
C _ B+135v _ 200v _ Heater _ Gnd _ -16,5(vertkl) _ Gnd(vertkl) _ +16,5(vertkl) _ Nc _ Abl
TFB 4125 DY (thosiba)
TFB 4125 HY
C _ B+ _ 180 _ Gnd _ Nc _ 26v _ 12v _ Abl _ Heater _ Afc
BSC 22-01-06
BSC 25-48
BSC 25-4803
BSC 24-01N362
C _ B+ _ Nc _ afc _ gnd _ Heater _abl _ nc
BSC 24-01N4014K
BSC 25-T1010A
BSC 25-09N21A
BSC 25-05N2110A
BSC 25-09N20E
Tep _ C _ Tep _ B+ _ Tep _ Tep _ gnd _ Heater _ abl _ 180v
DCF 2217J
C _ B+ _ afc _ boost-up _ 16,5 _ 24 _ abl _ gnd _ 200v _ heater
sumber artikel
http://algadut.blogspot.com
(TV CHINA)
BSC25-T1010A
FBT
|
-BSC25-091N21A
-BSC25-05N2110A
-BSC25-09N20E0
-tep-C-tep-B+-tep-tep-gnd-Ht-ABL-180v
(POLYTRON) JF
0601-19577
c-b+-gnd-200v-nc-ht-nc-abl-12+-12-
(POLYTRON) FCK 14A0060
FCM 2015 HE
FCM 14A032
c-b+-abl-24v-heater-16v-180v-gnd-nc-abl
(POLYTRON) FCK 14A0060
FCM 2015 HE
FCM 14A032
c-b+-abl-24v-heater-16v-180v-gnd-nc-abl
(POLYTRON)
FCM-20B061N
c-b+-gnd-185-nc-ht-nc-abl-12+-12-
(AKARI) FUV
20C009
c-180v-b+-gnd-nc-24v-nc-abl-ht-AFC
(PANASONIC) TLF
4N052
TLF 15644FI
TLF 4G50 3F
c-B+-nc-24v-heater-180v-gnd-AFC-16v
TLF 4G50 3F
c-B+-nc-24v-heater-180v-gnd-AFC-16v
(GOLD STAR) 154
064 P
154 177B
FCK 14B047
c-180-b+-gnd-16v-24v-40v-abl-ht-AFC
FCK 14B047
c-180-b+-gnd-16v-24v-40v-abl-ht-AFC
(SHARP)
FO101KM-SA
FO102KM-SA
F094
FO141PE-M
FAO61WJ-SA
FA060WJ-SA
FO147
FA135
FO193PEN1-SA
FA093WJ-SA
BSC-250216F
c-B+-gnd-24V-16V-afc-1
FO102KM-SA
F094
FO141PE-M
FAO61WJ-SA
FA060WJ-SA
FO147
FA135
FO193PEN1-SA
FA093WJ-SA
BSC-250216F
c-B+-gnd-24V-16V-afc-1
Diposkan
oleh elektro servis |
undefined
undefined
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
180
|
B+110
|
GND
|
AFC
|
12
|
ABL
|
HT
|
NC
|
NC
|
Digunakan Pada
TV : Konka
Persamaan : BCS25-N1603 BSC25-0113 BSC25-023D
Data Travo Flyback BSC25-023D
Persamaan : BCS25-N1603 BSC25-0113 BSC25-023D
Data Travo Flyback BSC25-023D
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
180
|
B+110
|
GND
|
AFC
|
12
|
ABL
|
HT
|
NC
|
NC
|
Digunakan Pada
TV : Konka
Persamaan : BCS25-N1603 BSC25-0113 BSC25-2678S
Data Travo Flyback BSC25-0113
Persamaan : BCS25-N1603 BSC25-0113 BSC25-2678S
Data Travo Flyback BSC25-0113
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
180
|
B+108
|
GND
|
AFC
|
12.5
|
ABL
|
HT
|
NP
|
NP
|
Digunakan Pada
TV : Konka
Persamaan : BSC25-0113 BSC25-023D BSC25-2678S
Data Travo Flyback FCM-21A004
Persamaan : BSC25-0113 BSC25-023D BSC25-2678S
Data Travo Flyback FCM-21A004
persamaan
BSC25-0206 bisa dganti dgn....
BSC25-2066S
BSC25-2692S
BSC25-2666S
BSC25-0106
BSC25-0111
JF0501-19133
BSC25-2066S
BSC25-2692S
BSC25-2666S
BSC25-0106
BSC25-0111
JF0501-19133
Data Pin FBT tv KONKA
Persamaanya
adalah :
JF0501-19133 (Tv
Konka type K2138CZ,K2178C)
BSC25-2692S (Tv
Konka type K2139C3)
BSC25-0206 (Tv
Konka type K1438C3)
BSC25-2666S (Tv
Konka type K2129F2)
BSC25-0106 (Tv
Konka type K1418C)
BSC25-0111 (Tv
Konka type K2129F3)
Diposkan
oleh elektro servis |
undefined
undefined
Data Travo
Flyback FA061WJ-SA
Kode Koneksi
: 12-3467-589-10
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+130
|
GND
|
24
|
12
|
AFC
|
180
|
GND
|
HT
|
ABL
|
Digunakan
Pada TV : Sharp
Data Travo
Flyback 154-138L
Kode Koneksi
: 135-2-468910-7
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
180
|
NC
|
H
|
AFC
|
B+110
|
45
|
ABL
|
GND
|
12
|
HT
|
Digunakan
Pada TV : Solitron
Data Travo
Flyback BSC24-01N4019L
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
Fungsi
|
H
|
B+110
|
NC
|
AFC
|
GND
|
HT
|
ABL
|
NP
|
NC
|
Digunakan
Pada TV : China Brand
Data Travo
Flyback JF0501-1901
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+110
|
GND
|
180
|
HT
|
ABL
|
GND
|
16
|
NC
|
26
|
Digunakan
Pada TV : Akira
Data Travo
Flyback BSC24-N40G1
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H1
|
H
|
H2
|
B+110
|
H3
|
H4
|
GND
|
HT
|
ABL
|
AFC
|
Digunakan
Pada TV : China Brand
Data Travo
Flyback BSC25-3504V
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
Fungsi
|
H
|
B+110
|
NC
|
AFC
|
GND
|
HT
|
ABL
|
NP
|
180
|
Digunakan
Pada TV : China Brand
Persamaan :
BSC22-0106 BSC25-05N1418 BSC25-05N2135C
Data Travo
Flyback BSC24-09G
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
Fungsi
|
H
|
B+110
|
NC
|
AFC
|
GND
|
HT
|
ABL
|
NP
|
NC
|
Digunakan
Pada TV : China Brand
Data Travo
Flyback BSC25-N0449
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
Fungsi
|
H
|
B+110
|
26
|
AFC
|
GND
|
HT
|
ABL
|
180
|
Digunakan
Pada TV : China Brand
Persamaan
: BSC22-68F03
Data Travo
Flyback BSC22-68F03
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
Fungsi
|
H
|
B+110
|
26
|
AFC
|
GND
|
HT
|
ABL
|
180
|
Digunakan
Pada TV : China Brand
Persamaan :
BSC25-N0449
Data Travo
Flyback FCM2014FL
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
16
|
AFC
|
HT
|
24
|
180
|
GND
|
BOST
|
ABL
|
B+110
|
H
|
Digunakan
Pada TV : Samsung
Persamaan :
FCM14A025
Data Travo
Flyback FCM14A025
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
16
|
AFC
|
HT
|
24
|
180
|
GND
|
BOST
|
ABL
|
B+110
|
H
|
Digunakan
Pada TV : Samsung
Persamaan :
FCM2014FL
Data Travo
Flyback JF0501-1914
Tampak
Bawah
|
Skema
Koneksi
|
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
180
|
H
|
AFC
|
B+110
|
12
|
24
|
ABL
|
GND
|
NC
|
HT
|
Digunakan
Pada TV : TCL
Persamaan :
BSC25-0231
Data Travo
Flyback BSC25-0231
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
180
|
H
|
AFC
|
B+110
|
12
|
24
|
ABL
|
GND
|
NC
|
HT
|
Digunakan
Pada TV : TCL
Persamaan :
JF0501-1914
Data Travo
Flyback BSC25-F1125A
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H1
|
H
|
H2
|
B+110
|
H3
|
H4
|
GND
|
HT
|
ABL
|
AFC
|
Digunakan
Pada TV : China Brand
Persamaan :
BSC24-014001D BSC25-N0321 BSC25-N1534 BSC25-N1634 BSC25-Z1003 BSC25-Z2705 BSC25-Z2706 BSC25-N0313
Data Travo
Flyback BSC25-N0313
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H1
|
H
|
H2
|
B+110
|
H3
|
H4
|
GND
|
HT
|
ABL
|
AFC
|
Digunakan
Pada TV : China Brand
Persamaan :
BSC24-014001D BSC25-N0321 BSC25-N1534 BSC25-N1634 BSC25-Z1003 BSC25-Z2705 BSC25-Z2706 BSC25-F1125A
Data Travo
Flyback BSC25-2678S
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
180
|
B+110
|
GND
|
AFC
|
12
|
ABL
|
HT
|
NC
|
NC
|
Digunakan
Pada TV : Konka
Persamaan :
BCS25-N1603 BSC25-0113 BSC25-023D
Data Travo
Flyback BSC25-023D
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
180
|
B+110
|
GND
|
AFC
|
12
|
ABL
|
HT
|
NC
|
NC
|
Digunakan
Pada TV : Konka
Persamaan :
BCS25-N1603 BSC25-0113 BSC25-2678S
Data Travo
Flyback BSC25-0113
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
180
|
B+110
|
GND
|
AFC
|
12
|
ABL
|
HT
|
NC
|
NC
|
Digunakan
Pada TV : Konka
Persamaan :
BCS25-N1603 BSC25-023D BSC25-2678S
Data Travo
Flyback BSC25-N0211
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
Fungsi
|
H
|
B+110
|
H1
|
AFC
|
GND
|
HT
|
ABL
|
H2
|
H3
|
Digunakan
Pada TV : China Brand
Persamaan :
BSC25-05N2120R
Data Travo
Flyback TFB4125CH
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+115
|
185
|
GND
|
NC
|
26
|
12
|
ABL
|
HT
|
AFC
|
Digunakan
Pada TV : Toshiba
Persamaan :
TFB4122BD
Data Travo
Flyback BSC25-05N2135C
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+115
|
16
|
AFC
|
GND
|
HT
|
ABL
|
NP
|
180
|
NP
|
Digunakan
Pada TV : Akira
Persamaan :
BSC22-0106 BSC25-05N1418 BSC25-3504VData
Travo Flyback FCM-20B061N
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+110
|
GND
|
180
|
NC
|
HT
|
NC
|
ABL
|
12
|
-12
|
Digunakan
Pada TV : Polytron
Persamaan :
JF0601-19577
Data Travo
Flyback JF0601-19577
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+110
|
GND
|
180
|
NC
|
HT
|
NC
|
ABL
|
12
|
-12
|
Digunakan
Pada TV : Polytron
Persamaan :
FCM-20B061N
Data Travo
Flyback DST2010-D91
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+110
|
GND
|
NC
|
180
|
HT
|
NC
|
ABL
|
12
|
-12
|
Digunakan
Pada TV : Polytron
Data Travo
Flyback BCS28-2198
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H1
|
H
|
H2
|
B+110
|
H3
|
H4
|
GND
|
HT
|
ABL
|
180
|
Digunakan
Pada TV : China
Data Travo
Flyback 6174Z-6238L
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
200
|
B+140
|
GND
|
13
|
-13
|
28
|
ABL
|
HT
|
AFC
|
Digunakan
Pada TV : LG
Persamaan :
154-177B 154-064P FCK-14B047 JF0501-1206 JF0501-91802
Data Travo
Flyback 6174Z-6005U
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+120
|
14
|
-14
|
204
|
28
|
NC
|
ABL
|
HT
|
NC
|
Digunakan
Pada TV : LG
Data Travo
Flyback 6174V-6006V
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
180
|
B+110
|
GND
|
NC
|
24
|
NC
|
ABL
|
HT
|
AFC
|
Digunakan
Pada TV : LG
Data Travo
Flyback 154-374A
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
200
|
B+125
|
GND
|
16
|
26
|
45
|
ABL
|
HT
|
AFC
|
Digunakan
Pada TV : LG
Persamaan :
154-177B 154-064P FCK-14B047 JF0501-1206 JF0501-91802 6174Z-6238L
Data Travo
Flyback JF0501-91802
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
180
|
B+130
|
GND
|
NC
|
24
|
NC
|
ABL
|
HT
|
NC
|
Digunakan
Pada TV : China
Persamaan :
154-177B 154-064P FCK-14B047 JF0501-1206 154-374A 6174Z-6238L
Data Travo
Flyback BCS25-4004U
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
H1
|
H2
|
GND
|
NC
|
12.5
|
B+140
|
ABL
|
HT
|
AFC
|
Digunakan
Pada TV : China
Data Travo
Flyback BCS25-N1603
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
180
|
B+108
|
GND
|
AFC
|
12.5
|
ABL
|
HT
|
NP
|
NP
|
Digunakan
Pada TV : Konka
Persamaan :
BSC25-0113 BSC25-023D BSC25-2678S
Data Travo
Flyback FCM-21A004
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+110
|
NC
|
195
|
AFC
|
ABL
|
GND
|
14
|
NC
|
24
|
Digunakan
Pada TV : China
Data Travo
Flyback BSC23-N0121
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
180
|
B+110
|
GND
|
12
|
26
|
NC
|
ABL
|
HT
|
AFC
|
Digunakan
Pada TV : LG
Persamaan :
6174V-6006H 6174V-6006E
Data Travo
Flyback 6174V-6006E
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
180
|
B+110
|
GND
|
12
|
26
|
NC
|
ABL
|
HT
|
AFC
|
Digunakan
Pada TV : LG
Persamaan :
6174V-6006H BSC23-N0121
Data Travo
Flyback 6174V-6006H
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
180
|
B+110
|
GND
|
12
|
26
|
NC
|
ABL
|
HT
|
AFC
|
Digunakan
Pada TV : LG
Persamaan :
6174V-6006E BSC23-N0121
Data Travo
Flyback FA137WJZZ
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+130
|
GND
|
24
|
NC
|
AFC
|
180
|
GND
|
HT
|
ABL
|
Digunakan
Pada TV : Sharp
Persamaan : BSC25-0217B
Data Travo
Flyback BSC25-0217B
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+130
|
GND
|
24
|
NC
|
AFC
|
180
|
GND
|
HT
|
ABL
|
Digunakan
Pada TV : Sharp
Persamaan :
FA137WJZZ
Data Travo
Flyback L40B9001
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+130
|
NC
|
AFC
|
GND
|
HT
|
GND
|
ABL
|
NC
|
180
|
Digunakan
Pada TV : Sanyo
Persamaan :
L40B05500Data Travo Flyback L40B05500
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+130
|
NC
|
AFC
|
GND
|
HT
|
GND
|
ABL
|
NC
|
180
|
Digunakan
Pada TV : Sanyo
Persamaan :
L40B9001
Data Travo
Flyback FCM14A032
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
NC
|
NC
|
GND
|
180
|
15
|
HT
|
24
|
ABL
|
B+110
|
H
|
Digunakan
Pada TV : Polytron
Data Travo
Flyback FCM2015HE
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
NC
|
NC
|
GND
|
180
|
15
|
HT
|
24
|
ABL
|
B+110
|
H
|
Digunakan
Pada TV : Polytron
Data Travo
Flyback FCK14A006
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
NC
|
NC
|
GND
|
180
|
15
|
HT
|
24
|
ABL
|
B+110
|
H
|
Digunakan
Pada TV : Polytron
Data Travo
Flyback JF0501-1206
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+115
|
180
|
16
|
24
|
HT
|
GND
|
ABL
|
AFC
|
NC
|
Digunakan
Pada TV : Sansui
Persamaan :
154-177B 154-064P FCK-14B047 JF0501-91802 154-374A 6174Z-6238L
Data Travo
Flyback FSA16012M
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+103
|
AFC
|
Bost-Up
|
16
|
24
|
ABL
|
GND
|
180
|
HT
|
Data Travo
Flyback DCF-1577
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+103
|
AFC
|
Bost-Up
|
16
|
24
|
ABL
|
GND
|
180
|
HT
|
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+103
|
AFC
|
Bost-Up
|
16
|
24
|
ABL
|
GND
|
180
|
HT
|
Digunakan
Pada TV : Solidtron
Data Travo
Flyback F0141PE-M
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+115
|
GND
|
24
|
12
|
AFC
|
180
|
GND
|
HT
|
ABL
|
Digunakan
Pada TV : Sharp
Data Travo
Flyback FCK-14B047
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
HC
|
180
|
B+110
|
GND
|
12
|
24
|
40
|
ABL
|
HT
|
AFC
|
Digunakan
Pada TV :
Persamaan :
154-177B 154-064P JF0501-1206 JF0501-91802 154-374A 6174Z-6238L
Data Travo
Flyback TFB4122BD
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+115
|
185
|
GND
|
NC
|
26
|
12
|
ABL
|
HT
|
AFT
|
Digunakan
Pada TV : Toshiba
Persamaan :
TFB4125CH
Data Travo
Flyback BSC24-01N40K
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
NC
|
B+110
|
GND
|
AFC
|
NC
|
ABL
|
HT
|
NC
|
NC
|
Digunakan
Pada TV : China Brand
Data Travo
Flyback 2435521
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
GND
|
25
|
200
|
B+110
|
HT
|
ABL
|
14
|
NC
|
NC
|
Digunakan
Pada TV : Hitachi
Data Travo
Flyback BSC25-N3604
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+110
|
NC
|
AFC
|
GND
|
HT
|
ABL
|
NP
|
H1
|
H2
|
Digunakan
Pada TV : China Brand
Data Travo
Flyback TLF4G503F
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+90
|
NC
|
24
|
HT
|
185
|
GND
|
AFC
|
16
|
ABL
|
Digunakan
Pada TV : Panasonic
Persamaan :
TLF15644F1 TLF4N052
Data Travo
Flyback TLF4N052
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+90
|
NC
|
24
|
HT
|
180
|
GND
|
AFC
|
16
|
ABL
|
Digunakan
Pada TV : Panasonic
Persamaan :
TLF15644F1 TLF4G503F
Data Travo
Flyback F02299PE-B
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+110
|
GND
|
NC
|
24
|
AFC
|
180
|
GND
|
HT
|
ABL
|
Digunakan
Pada TV : Sharp
Data Travo
Flyback F0102KM
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+115
|
GND
|
24
|
12
|
AFC
|
180
|
GND
|
HT
|
ABL
|
Digunakan
Pada TV : Sharp
Data Travo
Flyback F0101KM-SA
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+115
|
GND
|
24
|
12
|
AFC
|
180
|
GND
|
HT
|
ABL
|
Digunakan
Pada TV : Sharp
Data Travo
Flyback BSC24-08B
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+110
|
NC
|
AFC
|
GND
|
HT
|
ABL
|
NP
|
NC
|
NP
|
Digunakan
Pada TV : China Brand
Persamaan :
BSC23-01N16 BSC23-01N16 BSC24-01N36 BSC24-09G BSC25-4803T BSC25-N1617 BSC25-Z601F BSC24-01N4019L
Data Travo
Flyback BSC25-Z601F
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+110
|
NC
|
AFC
|
GND
|
HT
|
ABL
|
NP
|
NC
|
NP
|
Digunakan
Pada TV : China Brand
Persamaan :
BSC23-01N16 BSC23-01N16 BSC24-01N36 BSC24-09G BSC25-4803T BSC25-N1617 BSC24-08B BSC24-01N4019L
Data Travo
Flyback BSC25-N1617
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+110
|
NC
|
AFC
|
GND
|
HT
|
ABL
|
NP
|
NC
|
NP
|
Digunakan
Pada TV : China Brand
Persamaan :
BSC23-01N16 BSC23-01N16 BSC24-01N36 BSC24-09G BSC25-4803T BSC25-Z601F BSC24-08B BSC24-01N4019L
Data Travo
Flyback BSC25-4803T
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+110
|
NC
|
AFC
|
GND
|
HT
|
ABL
|
NP
|
NC
|
NP
|
Digunakan
Pada TV : China Brand
Persamaan :
BSC23-01N16 BSC23-01N16 BSC24-01N36 BSC24-09G BSC25-N1617 BSC25-Z601F BSC24-08B BSC24-01N4019L
Data Travo
Flyback FSV-14A004C
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
16.5
|
NC
|
HT
|
-16.5
|
185
|
GND
|
NC
|
ABL
|
B+125
|
H
|
Digunakan
Pada TV : Samsung
Persamaan :
FOK14A001 AA26-002101A
Data Travo
Flyback FSV20A099
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
15
|
24
|
HT
|
45
|
180
|
GND
|
NC
|
ABL
|
B+125
|
H
|
Digunakan
Pada TV : Sanken
Data Travo
Flyback F0147PE-M
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+115
|
GND
|
24
|
12
|
AFC
|
180
|
GND
|
HT
|
ABL
|
Digunakan
Pada TV : Sharp
Data Travo
Flyback F0193PEN1-SA
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+115
|
GND
|
45
|
12
|
AFC
|
180
|
GND
|
HT
|
ABL
|
Digunakan
Pada TV : Sharp
Persamaan :
F0194PEN1-SA F0147PE-M BCS21-2647 F0101KM-SA F0102KMF02299PE-B F0141PE-M
Data Travo
Flyback FOK14A001
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
16.5
|
NC
|
HT
|
-16.5
|
200
|
GND
|
NC
|
ABL
|
B+130
|
H
|
Digunakan
Pada TV : Samsung
Persamaan :
AA26-002101A FSV-14A004C
Data Travo
Flyback 154-177B
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
180
|
B+110
|
GND
|
12
|
24
|
40
|
ABL
|
HT
|
AFC
|
Digunakan
Pada TV : Goldstar
Persamaan :
154-064P FCK-14B047 JF0501-1206 JF0501-91802 154-374A 6174Z-6238L
Data Travo
Flyback TLF15644F1
No. Pin
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
Fungsi
|
H
|
B+90
|
NC
|
24
|
HT
|
185
|
GND
|
GND
|
16
|
ABL
|
Digunakan Pada TV :
Panasonic
Persamaan :
TLF4N052 TLF4G503F154-064P (goldstar14")
154-177B (goldstar21")
FCK-14B047 (akari14")
c _ 180v _ b+ _ gnd _ 16v _ 24v _ 40v _ abl _ htr _ afc.
6174Z-8005C (LG 20")
c - 180 - b+ - gnd - nc - 24 - gnd - abl - ht -afc.
154-064G (goldstar14")
154-177E untk (goldstar20")
c - 180v - b+(92v) - boost up - 24v - 12v - gnd - abl - htr - afc.
154 - 132A (intel)
154 - 132C
6174V - 600H (LG 21")
6174Z - 6040C (LG 21")
BSC 23 - N0107 (LG 14")
c _ 40v _ 16,5 _ htr _ gnd _ b+ _ 180v _ gnd _ abl _ 40v
154 189 C
154 189 H
154 277 C
BSC 22-2314 H
CF 0801-3701
FCM 20B027
c _ b+ _ 180v _ 16v _ 24v _ htr _ gnd _ abl _ afc _ nc.
6174V-6002U (LG 21")
BSC 26-N2121(N) (LG 21")
c - 180v - b+ - gnd - 12v - 26v - nc - abl - ht - afc
BSC 65 A (changhong)
c _ b+ _ 190v _ gnd _ nc _ nc _ 14,5v _ abl _ htr _ afc.
BSC 22-01N401
BSC 22-01N402
BSC 22-01-06
BSC 22-0201
BSC 22-2314B
BSC 23-4404A
BSC 23-14H
BSC 24-14L
BSC 24-01N36
BSC 24-01N362
BSC 24-01N362B
BSC 24-08A
BSC 24-09G
BSC 25-48
BSC 25-4803
BSC 25-4803F
BSC 25-4803T
BSC 25-N0803A
BSC 25-Z601A
c _ b+ _ nc _ afc _ gnd _ htr _ abl _ nc.
BSC 25-2678S (konka K2169TC)
c _ 200v _ b+ _ gnd _ afc _ 16v _ abl _ ht _ nc _ nc
BSC 24-01N4014K (china)
BSC 25-01N4010GA (14")
BSC 25-05N2110A
BSC 25-0909
BSC 25-09N20E
BSC 25-09N21A
BSC 25-1003A
BSC 25-1194D024 (14")
BSC 25-2108A
BSC 25-4813P (cina multy)
BSC 25-N1003A-4-R (21")
BSC 25-T1010A
BSC 25-Z603F (21")
BSC 26-0221 (29")
Tep _ c _ tep _ b+ _ tep _ tep _ gnd _ htr _ abl _ 180v.
DCF 2217 J
c _ b+ _ afc _ boost-up _ 16,5 _ 24 _ abl _ gnd _ 200v _ htr.
F 0101 KM-SA (sharp 14R20 14")
F 0102 KM-SA (sharp 20R20B, 20R200, 51R200)
F 0141 PE-M
F 0147
c _ b+ _ gnd _ 24V _ 16V _ afc _ 180V _ gnd _ ht _ abl
F 0122 PE-M (sharp 20Q250)
c _ b+ _ 24V _ 16V _ nc _ afc _ gnd _ ht _ 180V _ abl
F 0193 PEN1-SA (sharp 14U15)
c _ b+(115) _ gnd _ 40V _ 12V _ afc _ 180V _ gnd _ ht _ abl
F 0194 PEN1-SA (sharp 20R200MKII, 51U200, 20W200)
F 2037 PE-B (sharp 20AG2-S)
c _ b+ _ gnd _ 40V _ 16V _ afc _ 180V _ gnd _ ht _ abl
F 094
FA 061 WJ-SA (sharp 51X200)
c _ b+(130V) _ gnd _ 24V _ 12V _ afc _ 185V _ gnd _ ht _ abl
FA 113 WJ-B (sharp 51DXF250E)
c _ b+ _ gnd _ 24V _ nc _ afc _ 180V _ gnd _ ht _ abl
FA 122 WJ-B
c _ b+(130V) _ gnd _ 24V _ nc _ afc _ 180V _ gnd _ ht _ abl
FA 011 WJ-B (sharp)
c _ b+ _ gnd _ 24V _ 16V _ afc _ 180V _ nc _ ht _ abl
FA 060 WJ-SA (sharp 14S20MKII)
c _ b+ _ gnd _ nc _ 12V _ afc(-12V) _ 180V _ gnd _ ht _ abl
FCG 2045 BL
afc - 16,5v _ htr _ boost-up _ B+83v _ gnd _ nc _ c _ abl _ 175v _ 24v
FCK 1411 L 01
FCM 14A025
c _ boost-up _ abl _ b+ _ gnd _ 180v _ 24V _ htr _ afc _ 16,5v.
FCK 14A006 (14")
FCM 2015HE (21")
FCM 14A032 (21")
FTK 21R002 (21")
KFS 60844A (21")
nc _ nc _ gnd _ 180 _ 15v _ ht _ 24 _ abl _ b+ _ c
FCM 14B014N (polytron 14")
FCM 20B061N (polytron 21")
c _ b+ _ gnd _ 185 _ nc _ htr _ nc _ abl _ +12 _ -12.
FUH29VH02 (polytron29)
c _ b+ _ gnd _ 185v _ nc(16v) _ htr _ nc _ abl(bcl) _ 12v _ 12v
FSV 20A001 (samsung)
FCK 14A033
FSV 14A001
c _ b+125v _ abl _ nc _ gnd _ 185 _ 46 _ htr _ nc _ 16,5
FTK-14A004P (samsung)
c _ b+125v _ abl _ nc _ gnd _ 180v _ 24v _ htr _ afc _ 16,5.
FUY-20C009 (akari)
c _ 180 _ b+ _ gnd _ nc _ 24 _ nc _ abl _ htr _ afc.
FCG 2045 BL
afc _ 16,5v _ htr _ boost-up _ b+83v _ gnd _ nc _ c _ abl _ 175v _ 24v.
HTF2904
c _ b+ _ 24v _ 16v _ gnd _ htr _ grnd _ afc _ nc _ 180v
FSA 16012M
DCF 2077A
DCF 1577
FSA 16012M
c _ b+ _ afc _ boost-up _ 16,5 _ abl _ 25v _ gnd _ 185v _ htr.
JF 0501-1206
c _ b+ _ 180v _ 16v _ 25v _ htr _ gnd _ abl _ afc _ nc.
JF 0601-19577 (polytron 21'' MX5203R)
c _ b+ _ gnd _ 200v _ nc _ htr _ nc _ abl _ +12 _ -12.
JY 0301-0206 (china 29")
c _ b+ _ nc _ afc _ gnd _ Htr _ abl _ tep _ tep _ tep
K 148 TC
c _ 180v _ b+ _ gnd _ afc _ 16v _ abl _ htr _ nc _ nc.
MC FBC-015
LCE CF0854
c _ b+ _ gnd _ afc _ 185 _ htr _ 25 _ 15 _ gnd _ abl.
8-598-858--00 (sony KV-PG21P70)
8-598-811
c _ b+135v _ 200v _ htr _ gnd _ -16,5(vertkl) _ Gnd(vertkl) _ +16,5(vertkl) _ nc _ abl
TFB 4125 DY (thosiba)
TFB 4125 HY
c _ b+ _ 180 _ gnd _ nc _ 26v _ 12v _ abl _ htr _ afc.
TLF 4N052
c _ b+115V _ nc _ 25V _ heater _ 180V _ gnd _ diground melalui R 1 ohm 2W. _ 16V. _ abl
ZTF N82014B (Panasonic 20/21")
c _ b+140V _ nc _ +16V _ gnd _ htr _ gnd _ abl _ -16V _ 180V
154-177B (goldstar21")
FCK-14B047 (akari14")
c _ 180v _ b+ _ gnd _ 16v _ 24v _ 40v _ abl _ htr _ afc.
6174Z-8005C (LG 20")
c - 180 - b+ - gnd - nc - 24 - gnd - abl - ht -afc.
154-064G (goldstar14")
154-177E untk (goldstar20")
c - 180v - b+(92v) - boost up - 24v - 12v - gnd - abl - htr - afc.
154 - 132A (intel)
154 - 132C
6174V - 600H (LG 21")
6174Z - 6040C (LG 21")
BSC 23 - N0107 (LG 14")
c _ 40v _ 16,5 _ htr _ gnd _ b+ _ 180v _ gnd _ abl _ 40v
154 189 C
154 189 H
154 277 C
BSC 22-2314 H
CF 0801-3701
FCM 20B027
c _ b+ _ 180v _ 16v _ 24v _ htr _ gnd _ abl _ afc _ nc.
6174V-6002U (LG 21")
BSC 26-N2121(N) (LG 21")
c - 180v - b+ - gnd - 12v - 26v - nc - abl - ht - afc
BSC 65 A (changhong)
c _ b+ _ 190v _ gnd _ nc _ nc _ 14,5v _ abl _ htr _ afc.
BSC 22-01N401
BSC 22-01N402
BSC 22-01-06
BSC 22-0201
BSC 22-2314B
BSC 23-4404A
BSC 23-14H
BSC 24-14L
BSC 24-01N36
BSC 24-01N362
BSC 24-01N362B
BSC 24-08A
BSC 24-09G
BSC 25-48
BSC 25-4803
BSC 25-4803F
BSC 25-4803T
BSC 25-N0803A
BSC 25-Z601A
c _ b+ _ nc _ afc _ gnd _ htr _ abl _ nc.
BSC 25-2678S (konka K2169TC)
c _ 200v _ b+ _ gnd _ afc _ 16v _ abl _ ht _ nc _ nc
BSC 24-01N4014K (china)
BSC 25-01N4010GA (14")
BSC 25-05N2110A
BSC 25-0909
BSC 25-09N20E
BSC 25-09N21A
BSC 25-1003A
BSC 25-1194D024 (14")
BSC 25-2108A
BSC 25-4813P (cina multy)
BSC 25-N1003A-4-R (21")
BSC 25-T1010A
BSC 25-Z603F (21")
BSC 26-0221 (29")
Tep _ c _ tep _ b+ _ tep _ tep _ gnd _ htr _ abl _ 180v.
DCF 2217 J
c _ b+ _ afc _ boost-up _ 16,5 _ 24 _ abl _ gnd _ 200v _ htr.
F 0101 KM-SA (sharp 14R20 14")
F 0102 KM-SA (sharp 20R20B, 20R200, 51R200)
F 0141 PE-M
F 0147
c _ b+ _ gnd _ 24V _ 16V _ afc _ 180V _ gnd _ ht _ abl
F 0122 PE-M (sharp 20Q250)
c _ b+ _ 24V _ 16V _ nc _ afc _ gnd _ ht _ 180V _ abl
F 0193 PEN1-SA (sharp 14U15)
c _ b+(115) _ gnd _ 40V _ 12V _ afc _ 180V _ gnd _ ht _ abl
F 0194 PEN1-SA (sharp 20R200MKII, 51U200, 20W200)
F 2037 PE-B (sharp 20AG2-S)
c _ b+ _ gnd _ 40V _ 16V _ afc _ 180V _ gnd _ ht _ abl
F 094
FA 061 WJ-SA (sharp 51X200)
c _ b+(130V) _ gnd _ 24V _ 12V _ afc _ 185V _ gnd _ ht _ abl
FA 113 WJ-B (sharp 51DXF250E)
c _ b+ _ gnd _ 24V _ nc _ afc _ 180V _ gnd _ ht _ abl
FA 122 WJ-B
c _ b+(130V) _ gnd _ 24V _ nc _ afc _ 180V _ gnd _ ht _ abl
FA 011 WJ-B (sharp)
c _ b+ _ gnd _ 24V _ 16V _ afc _ 180V _ nc _ ht _ abl
FA 060 WJ-SA (sharp 14S20MKII)
c _ b+ _ gnd _ nc _ 12V _ afc(-12V) _ 180V _ gnd _ ht _ abl
FCG 2045 BL
afc - 16,5v _ htr _ boost-up _ B+83v _ gnd _ nc _ c _ abl _ 175v _ 24v
FCK 1411 L 01
FCM 14A025
c _ boost-up _ abl _ b+ _ gnd _ 180v _ 24V _ htr _ afc _ 16,5v.
FCK 14A006 (14")
FCM 2015HE (21")
FCM 14A032 (21")
FTK 21R002 (21")
KFS 60844A (21")
nc _ nc _ gnd _ 180 _ 15v _ ht _ 24 _ abl _ b+ _ c
FCM 14B014N (polytron 14")
FCM 20B061N (polytron 21")
c _ b+ _ gnd _ 185 _ nc _ htr _ nc _ abl _ +12 _ -12.
FUH29VH02 (polytron29)
c _ b+ _ gnd _ 185v _ nc(16v) _ htr _ nc _ abl(bcl) _ 12v _ 12v
FSV 20A001 (samsung)
FCK 14A033
FSV 14A001
c _ b+125v _ abl _ nc _ gnd _ 185 _ 46 _ htr _ nc _ 16,5
FTK-14A004P (samsung)
c _ b+125v _ abl _ nc _ gnd _ 180v _ 24v _ htr _ afc _ 16,5.
FUY-20C009 (akari)
c _ 180 _ b+ _ gnd _ nc _ 24 _ nc _ abl _ htr _ afc.
FCG 2045 BL
afc _ 16,5v _ htr _ boost-up _ b+83v _ gnd _ nc _ c _ abl _ 175v _ 24v.
HTF2904
c _ b+ _ 24v _ 16v _ gnd _ htr _ grnd _ afc _ nc _ 180v
FSA 16012M
DCF 2077A
DCF 1577
FSA 16012M
c _ b+ _ afc _ boost-up _ 16,5 _ abl _ 25v _ gnd _ 185v _ htr.
JF 0501-1206
c _ b+ _ 180v _ 16v _ 25v _ htr _ gnd _ abl _ afc _ nc.
JF 0601-19577 (polytron 21'' MX5203R)
c _ b+ _ gnd _ 200v _ nc _ htr _ nc _ abl _ +12 _ -12.
JY 0301-0206 (china 29")
c _ b+ _ nc _ afc _ gnd _ Htr _ abl _ tep _ tep _ tep
K 148 TC
c _ 180v _ b+ _ gnd _ afc _ 16v _ abl _ htr _ nc _ nc.
MC FBC-015
LCE CF0854
c _ b+ _ gnd _ afc _ 185 _ htr _ 25 _ 15 _ gnd _ abl.
8-598-858--00 (sony KV-PG21P70)
8-598-811
c _ b+135v _ 200v _ htr _ gnd _ -16,5(vertkl) _ Gnd(vertkl) _ +16,5(vertkl) _ nc _ abl
TFB 4125 DY (thosiba)
TFB 4125 HY
c _ b+ _ 180 _ gnd _ nc _ 26v _ 12v _ abl _ htr _ afc.
TLF 4N052
c _ b+115V _ nc _ 25V _ heater _ 180V _ gnd _ diground melalui R 1 ohm 2W. _ 16V. _ abl
ZTF N82014B (Panasonic 20/21")
c _ b+140V _ nc _ +16V _ gnd _ htr _ gnd _ abl _ -16V _ 180V
